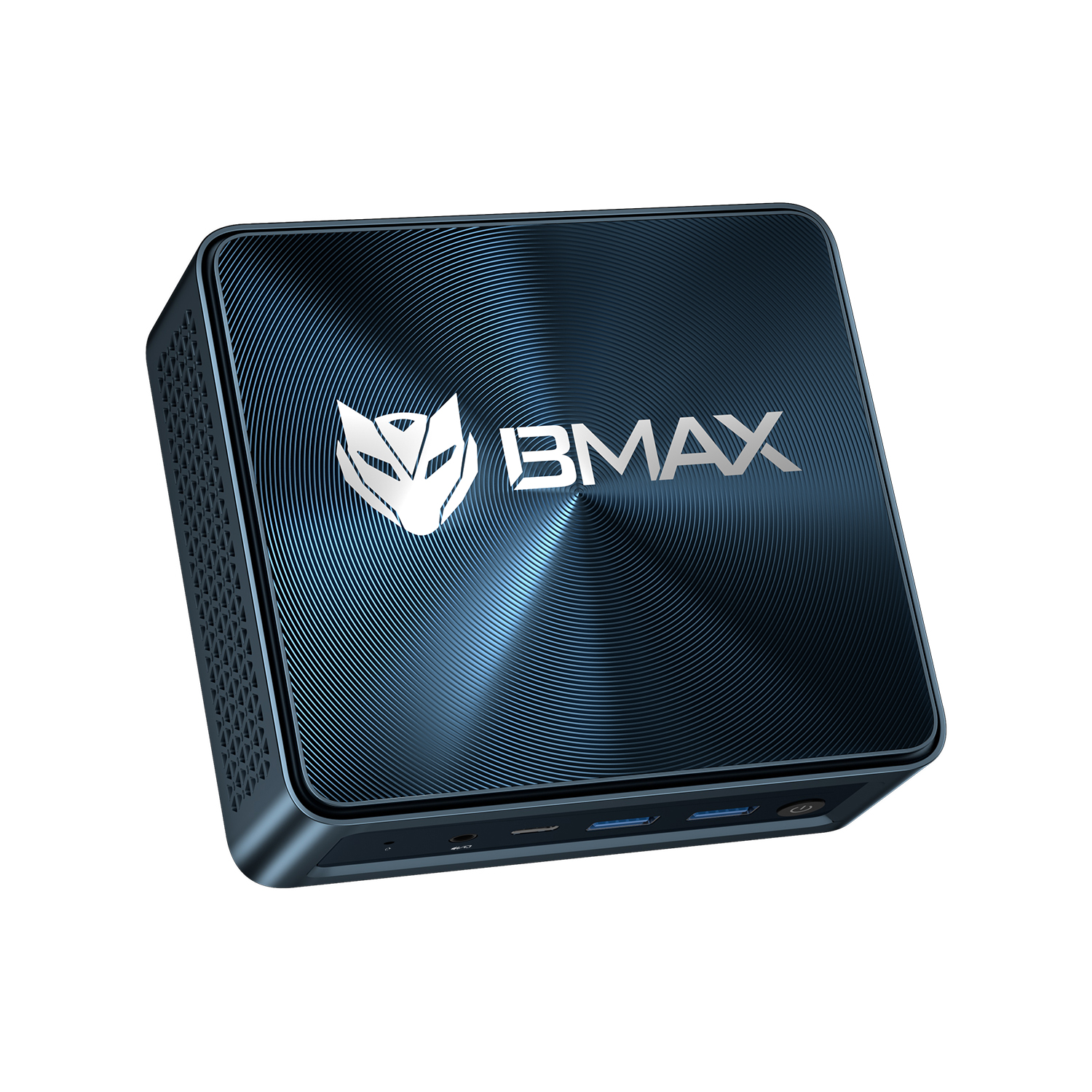

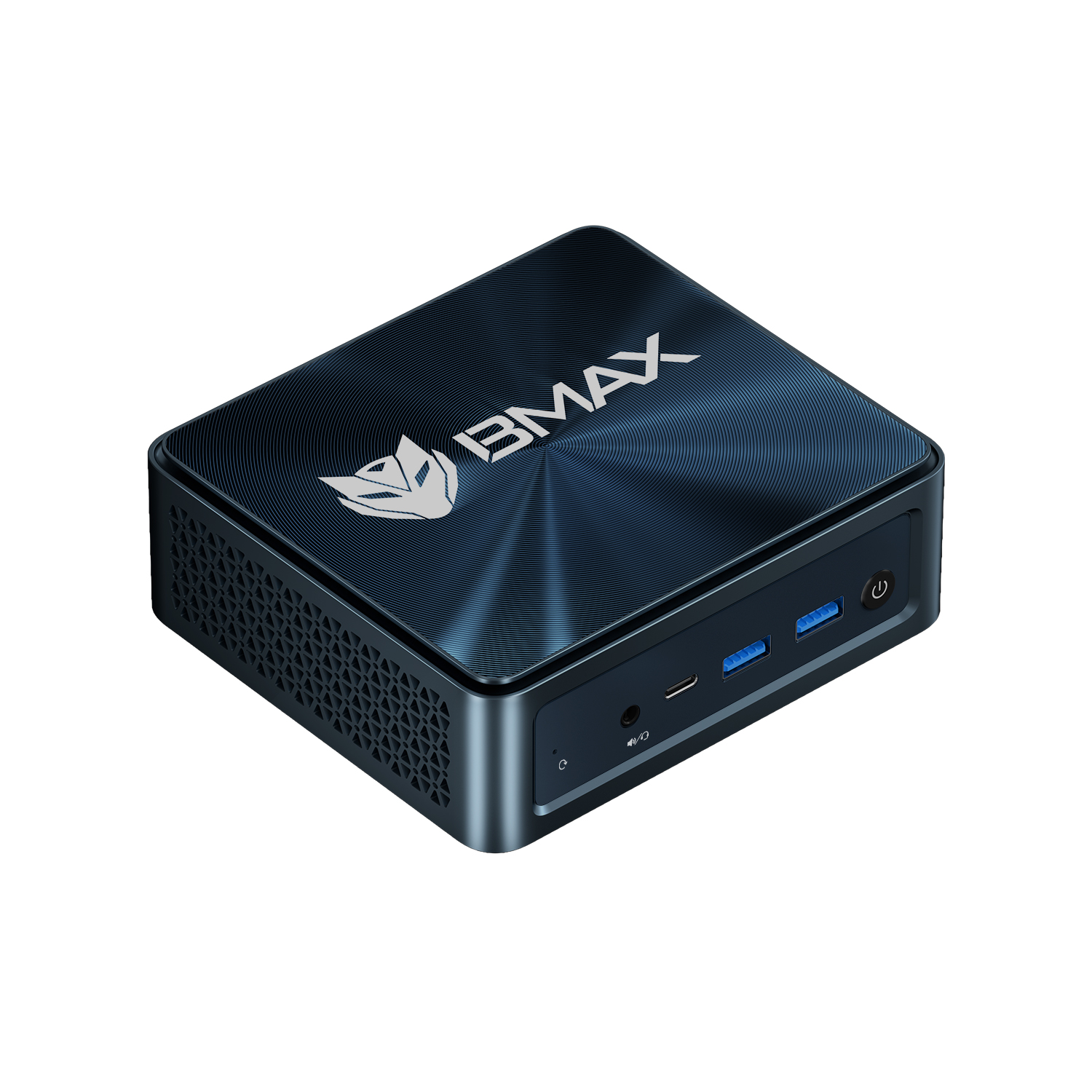

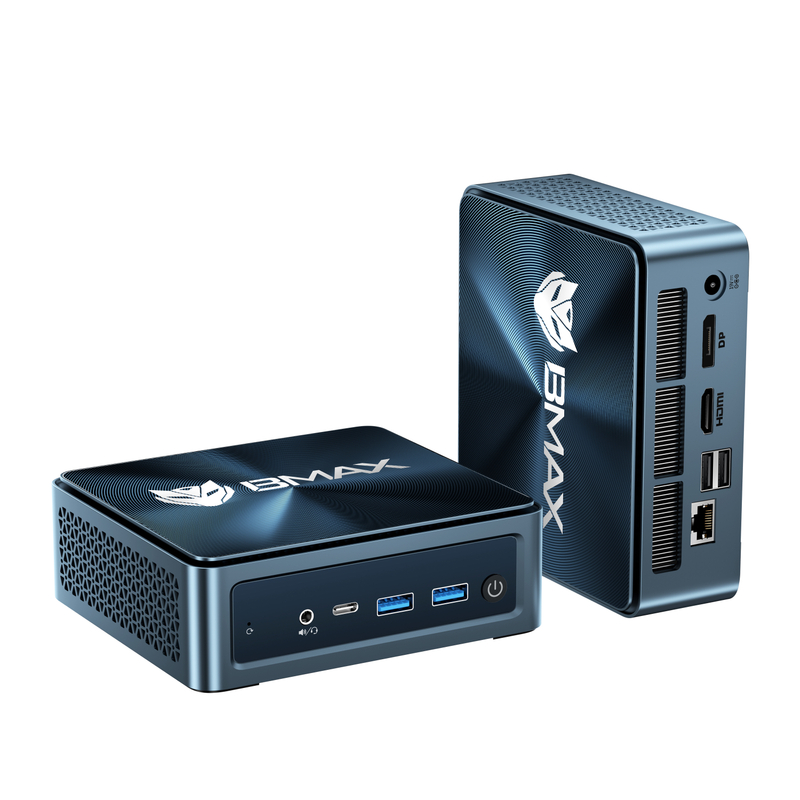

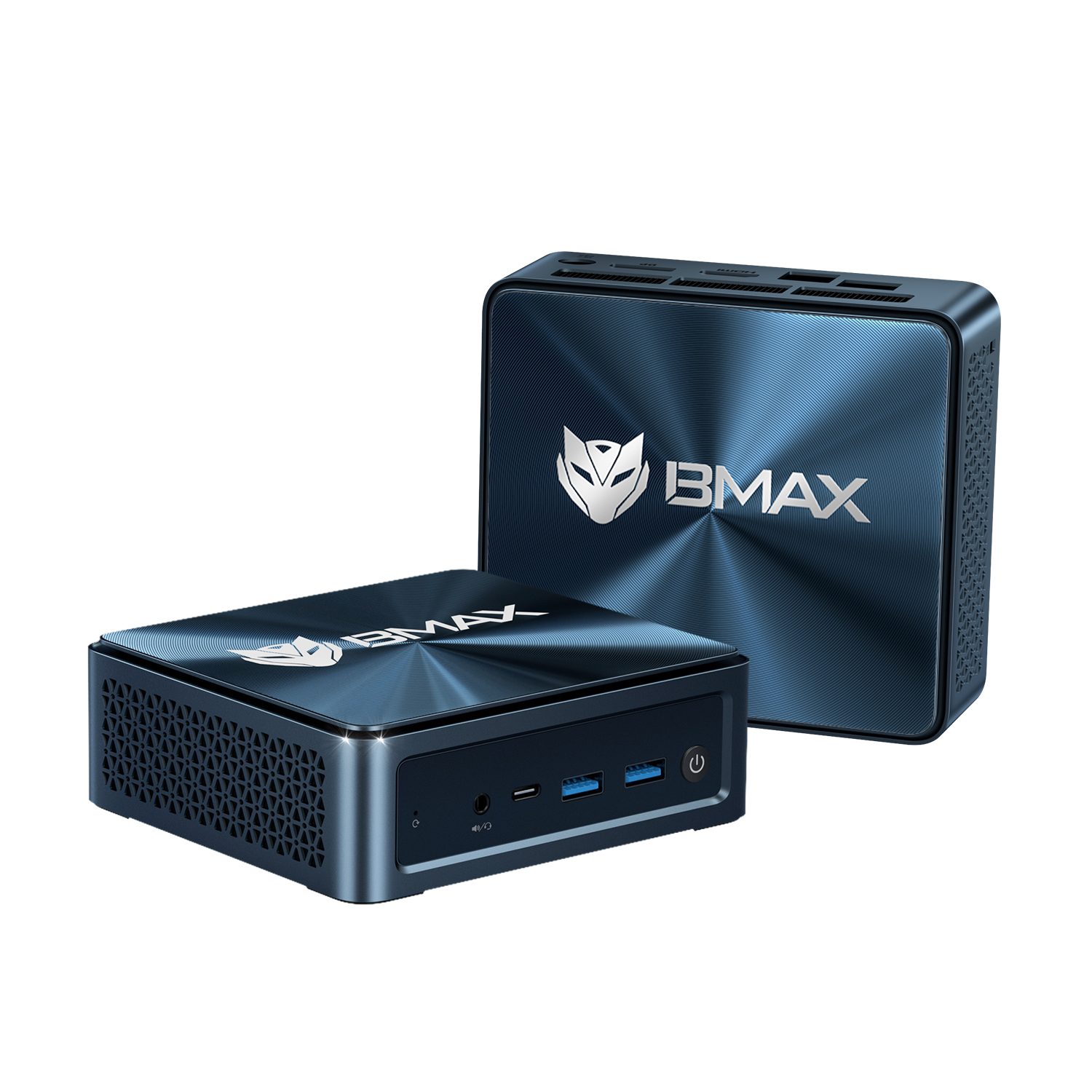

MaxMini B9 Plus

Name: MaxMini B9 Plus
Rating: 5.0 (72 reviews)

CPU: Intel 12th Gen Core i5-1250P Processor

GPU: Intel Iris Xe Graphics

Memory: 24GB LPDDR5

Storage: 512GB NVMe SSD

System: Windows 11

WiFi: WiFi 6

Bluetooth: Bluetooth 5.2

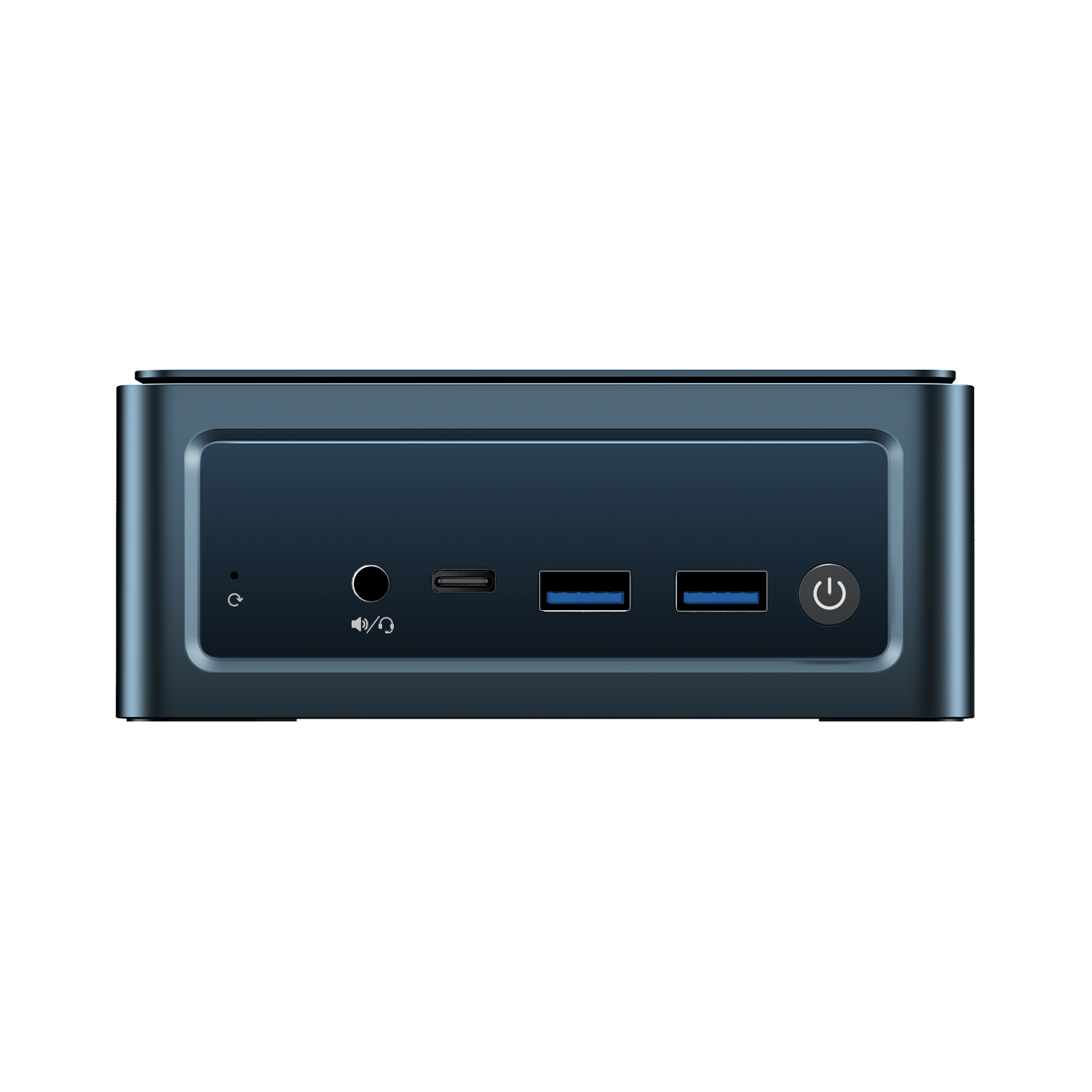

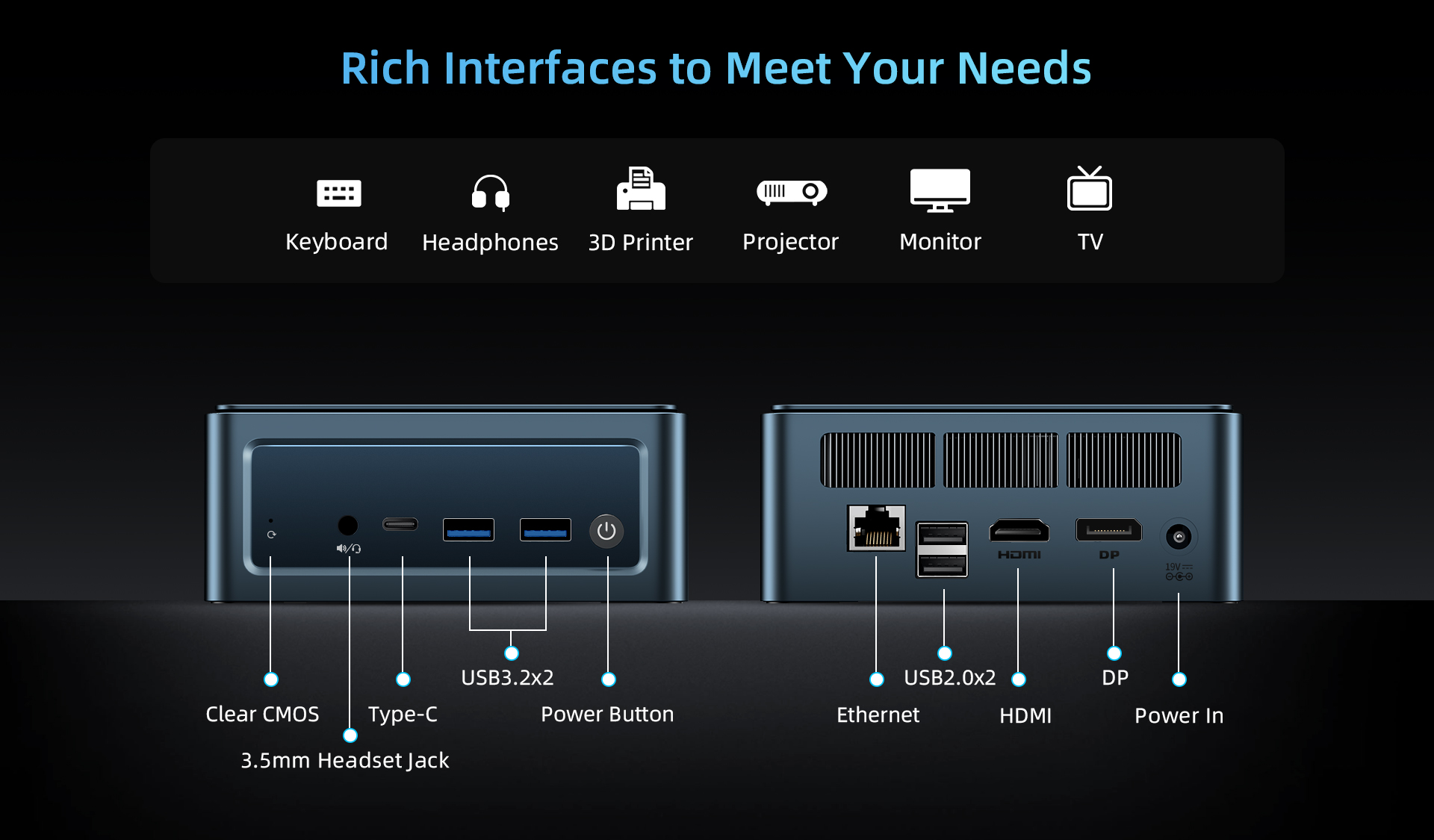

Interface: USB ×4, DP, Headset jack, HDMI ×1, Type-C x 1, RJ45 ×1

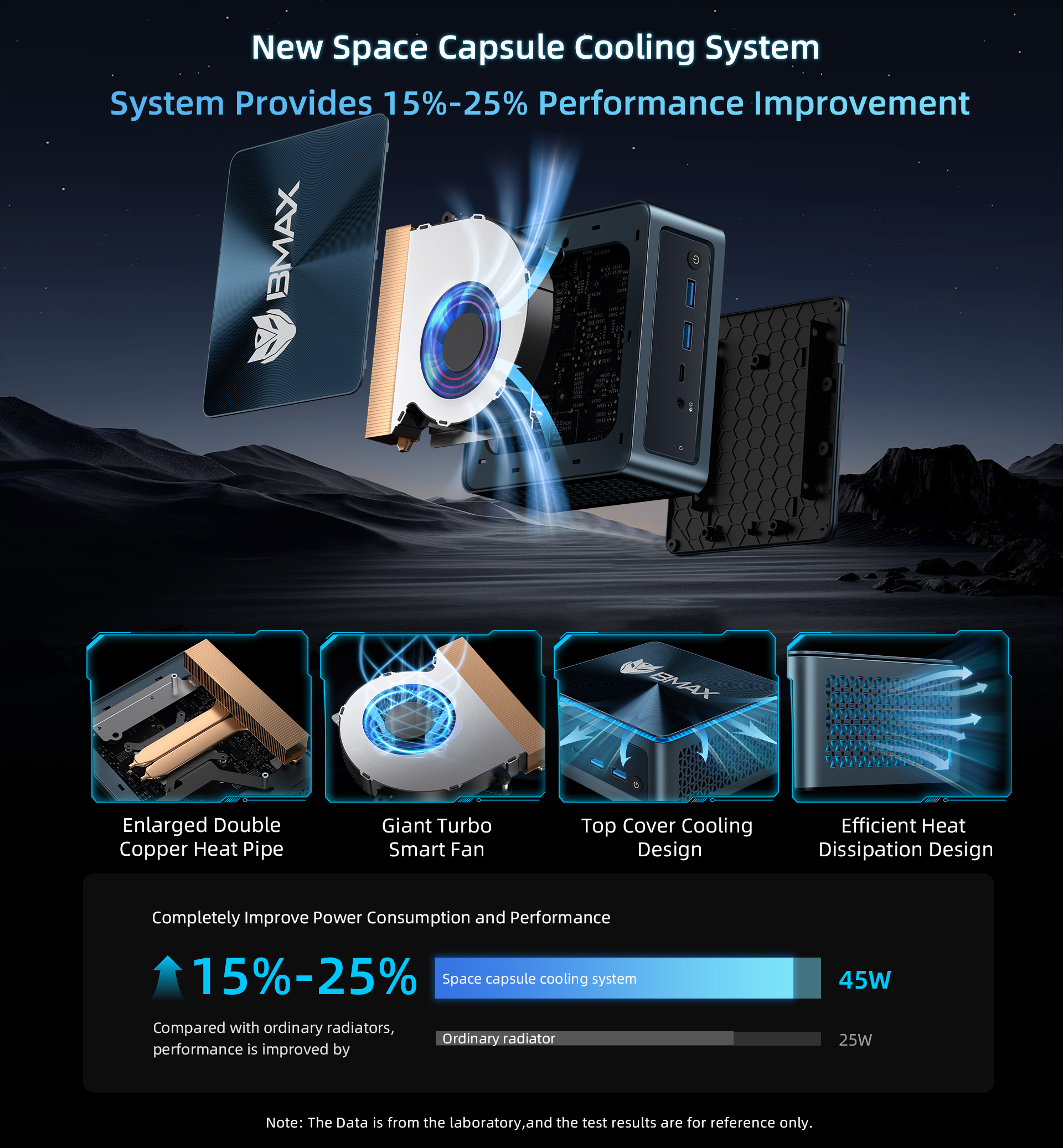

Cooling System：Space Capsule Cooling System
Expandable storage：M.2 2280 SSD Slot×1
Appearance: Slim and lightweight of 400g

Availability:

Quantity:

Product Description
Technical Details

Intel i5 B9 Plus

Model	MaxMini B9 Plus
Processor	Intel i5-1250P
Frequency	4.40 GHz
Number of Cores & Number of Threads	12 Cores & 16 Threads
Graphics	Intel® Iris® Xe Graphics
Memory	24GB LPDDR5
Storage	512GB NVMe SSD
Expandable storage	M.2_2280_PCI-e x4 (NVMe) x1, M.2_2280_SATA(AHCI)&PCI-e x4(NVMe) x1
LAN	1000Mbps Ethernet ×1
WiFi	802.11a/b/g/n/ac/ax
USB	USB 3.2 ×2, USB 2.0 ×2

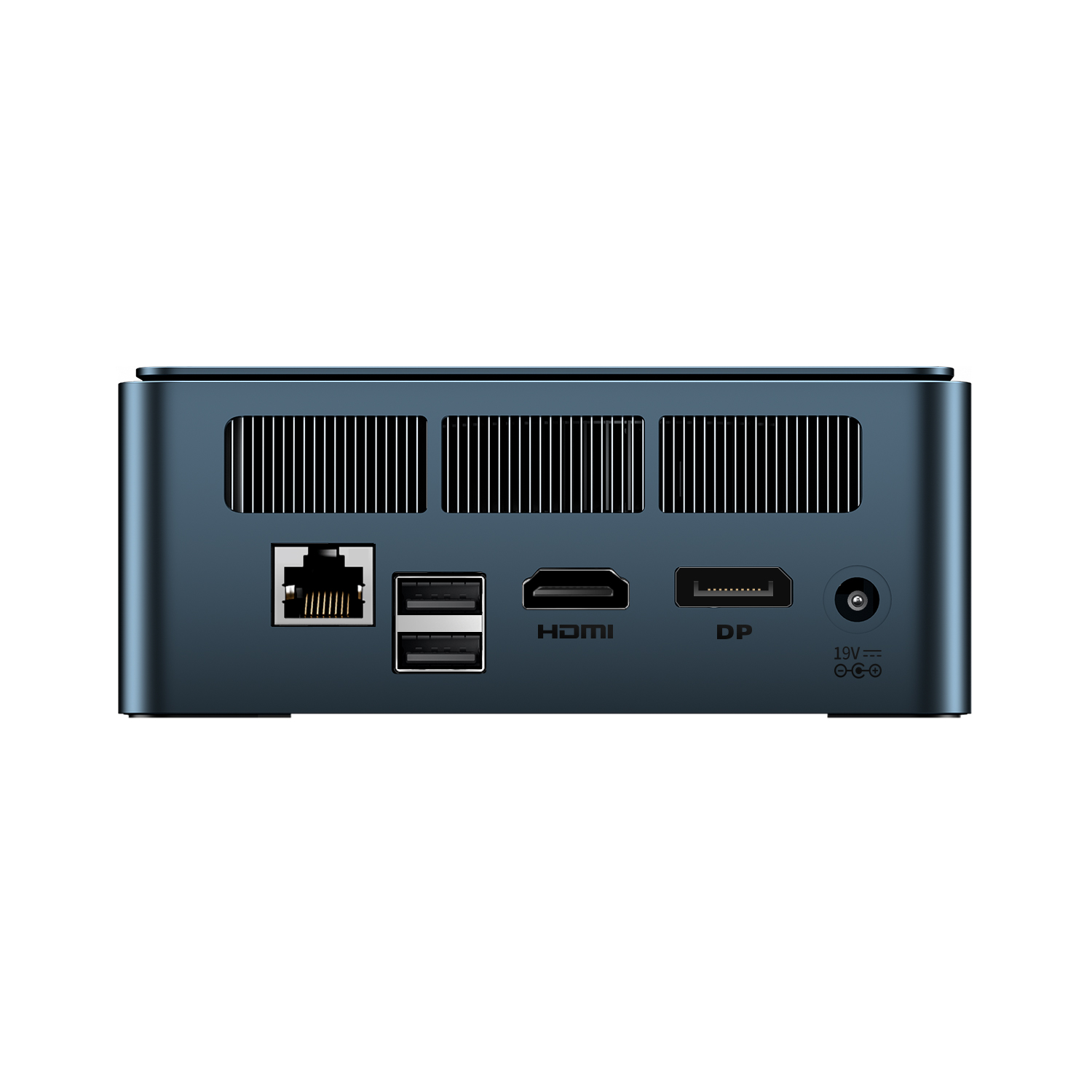

Other ports	DC19V/3.42A, 3.5mm Headset jack, DP×1，HDMI 2.1 ×1，Type-C (full features) x 1, RJ45 ×1
Item Dimensions	126mm(L)×112mm(W)×52mm(H)(Due to product configuration and manufacturing process, the actual body size may vary, please refer to the actual product.)
Item Weight	Approximately 400g

Model	MaxMini B9 Plus
Processor	Intel i5-1250P
Frequency	4.40 GHz
Number of Cores & Number of Threads	12 Cores & 16 Threads
Graphics	Intel® Iris® Xe Graphics
Memory	24GB LPDDR5
Storage	512GB NVMe SSD
Expandable storage	M.2_2280_PCI-e x4 (NVMe) x1, M.2_2280_SATA(AHCI)&PCI-e x4(NVMe) x1
LAN	1000Mbps Ethernet ×1
WiFi	802.11a/b/g/n/ac/ax
USB	USB 3.2 ×2, USB 2.0 ×2
Other ports	DC19V/3.42A, 3.5mm Headset jack, DP×1，HDMI 2.1 ×1，Type-C (full features) x 1, RJ45 ×1
Item Dimensions	126mm(L)×112mm(W)×52mm(H)(Due to product configuration and manufacturing process, the actual body size may vary, please refer to the actual product.)
Item Weight	Approximately 400g

MaxMini B9 Plus
