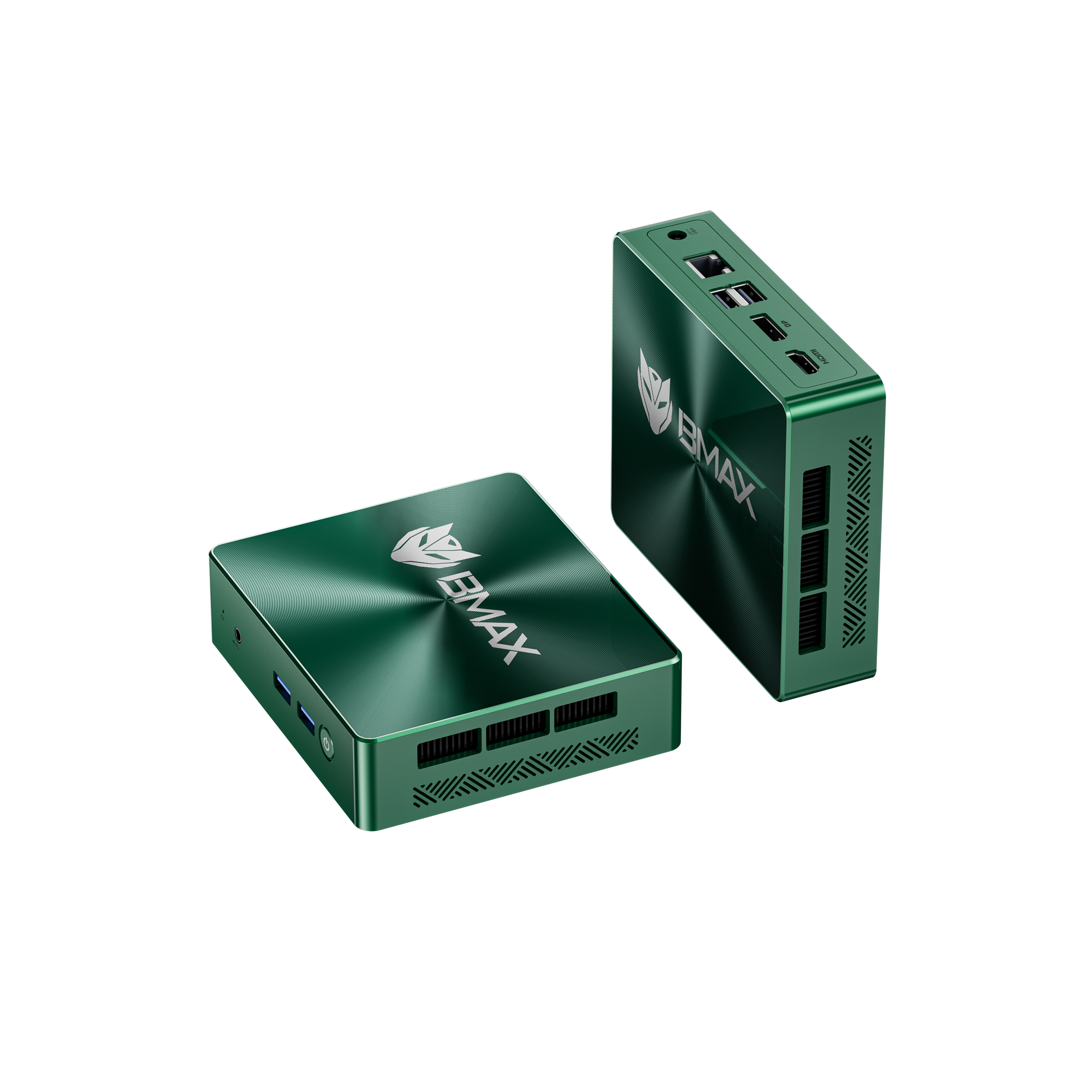

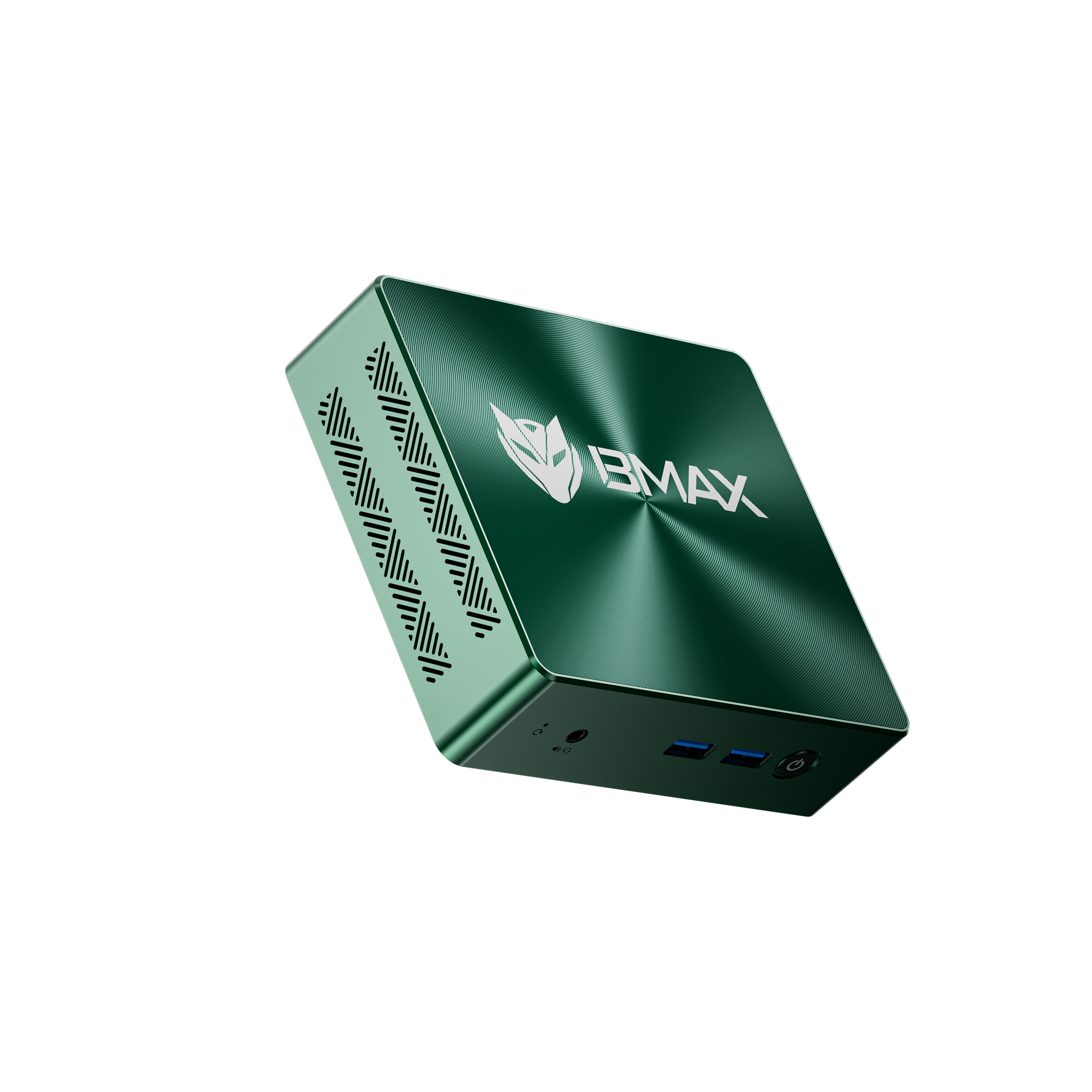

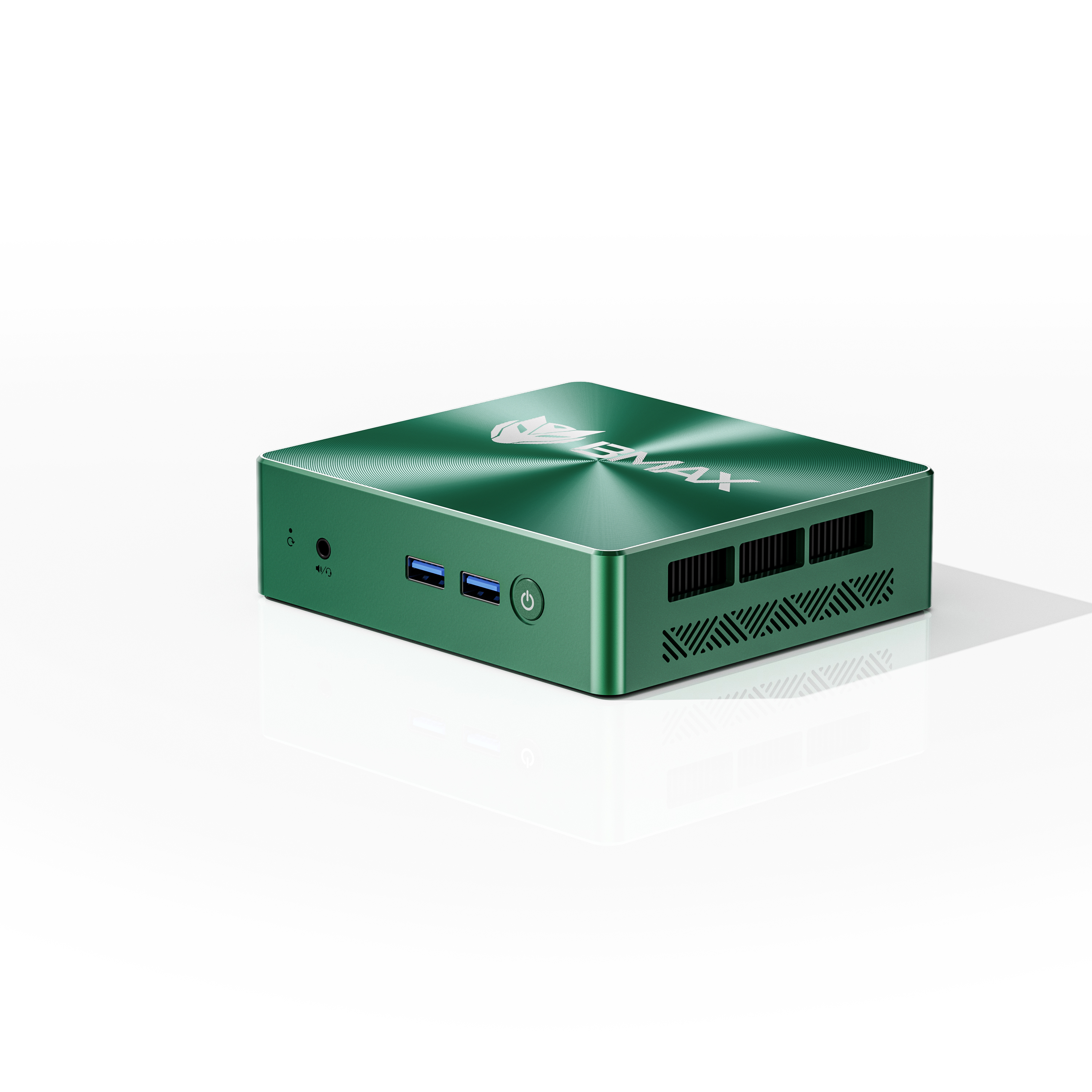

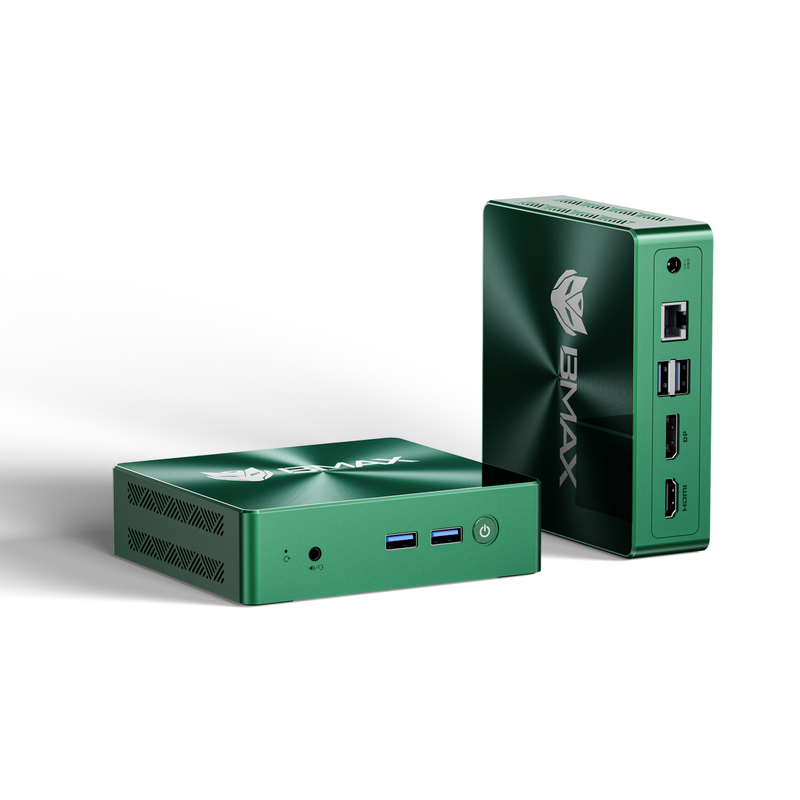

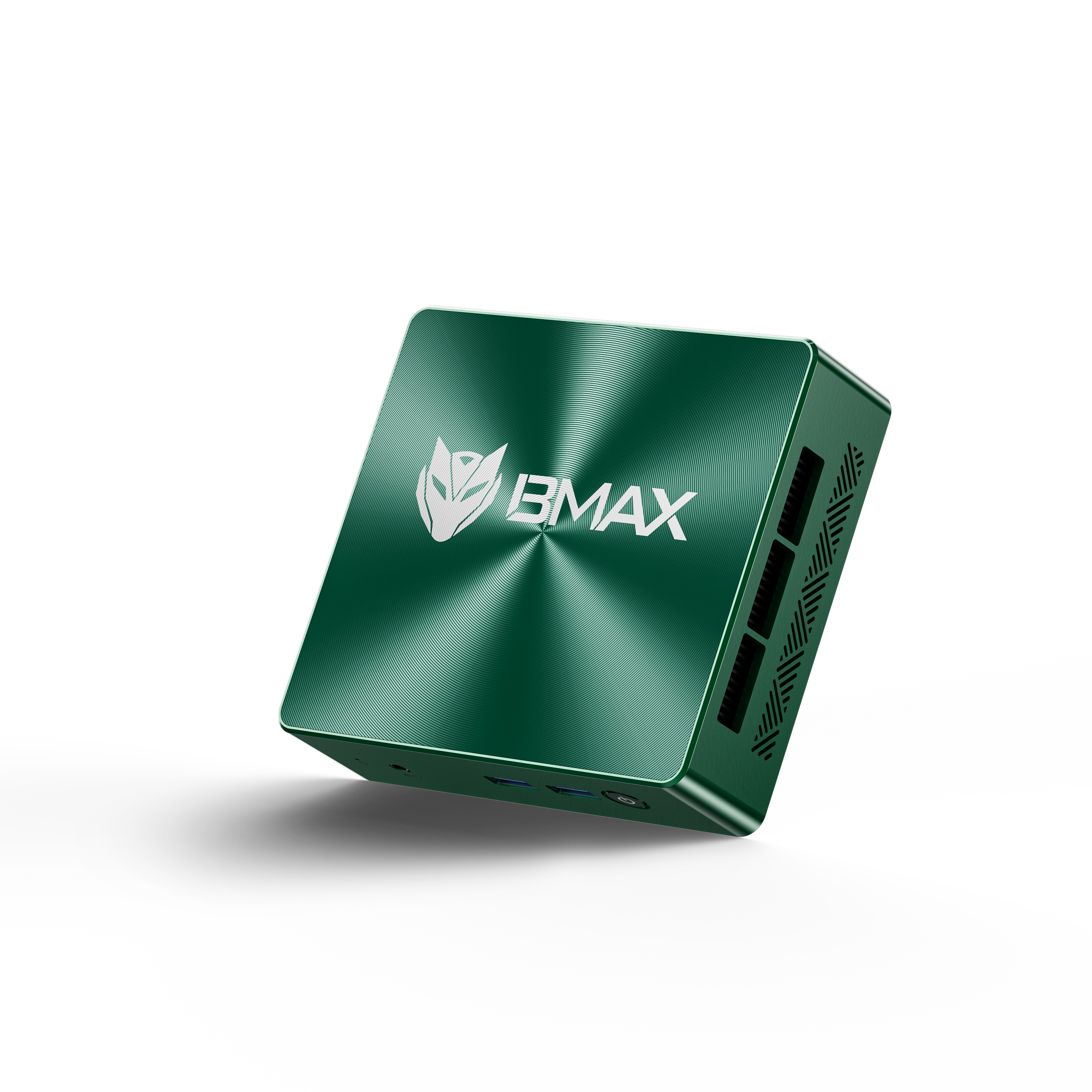

BMAX B6 Turbo
BMAX B6 Turbo BMAX B6 Turbo
BMAX B6 Turbo BMAX B6 Turbo
BMAX B6 Turbo BMAX B6 Turbo
BMAX B6 Turbo BMAX B6 Turbo
BMAX B6 Turbo BMAX B6 Turbo

loading

BMAX B6 Turbo

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
CPU: Intel Core i5 8257U
GPU: Intel Iris Plus Graphics 645
Memory: 16GB DDR4
Storage: 512GB SSD

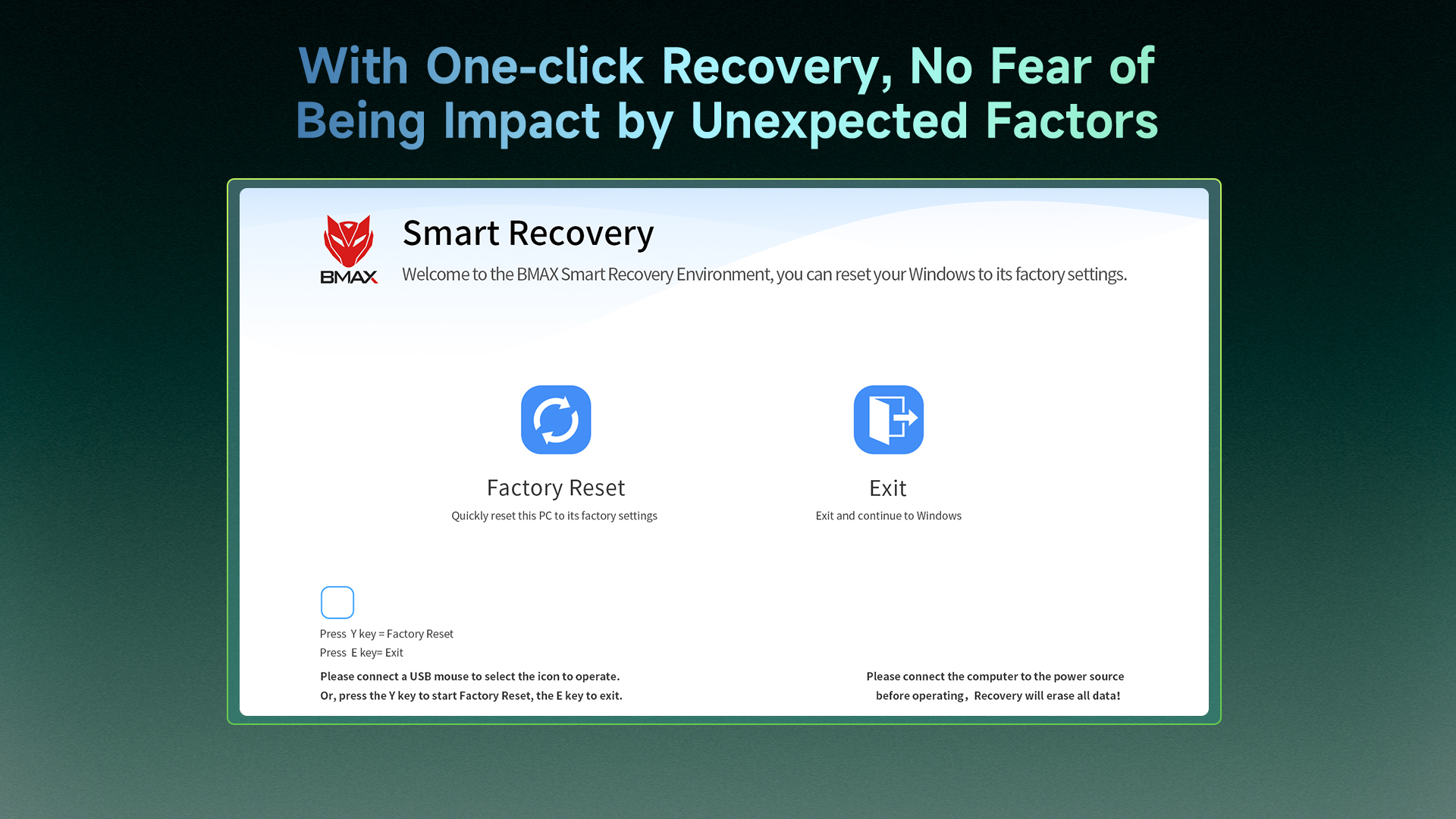

System: Windows 11
WiFi: Wi-Fi 6, 2.4GHz/5GHz Dual Band
Bluetooth: Bluetooth 5.2
Interface: USB×4,DP×1, Headset jack, HDMI ×1, Type-C x 1, RJ45 ×1

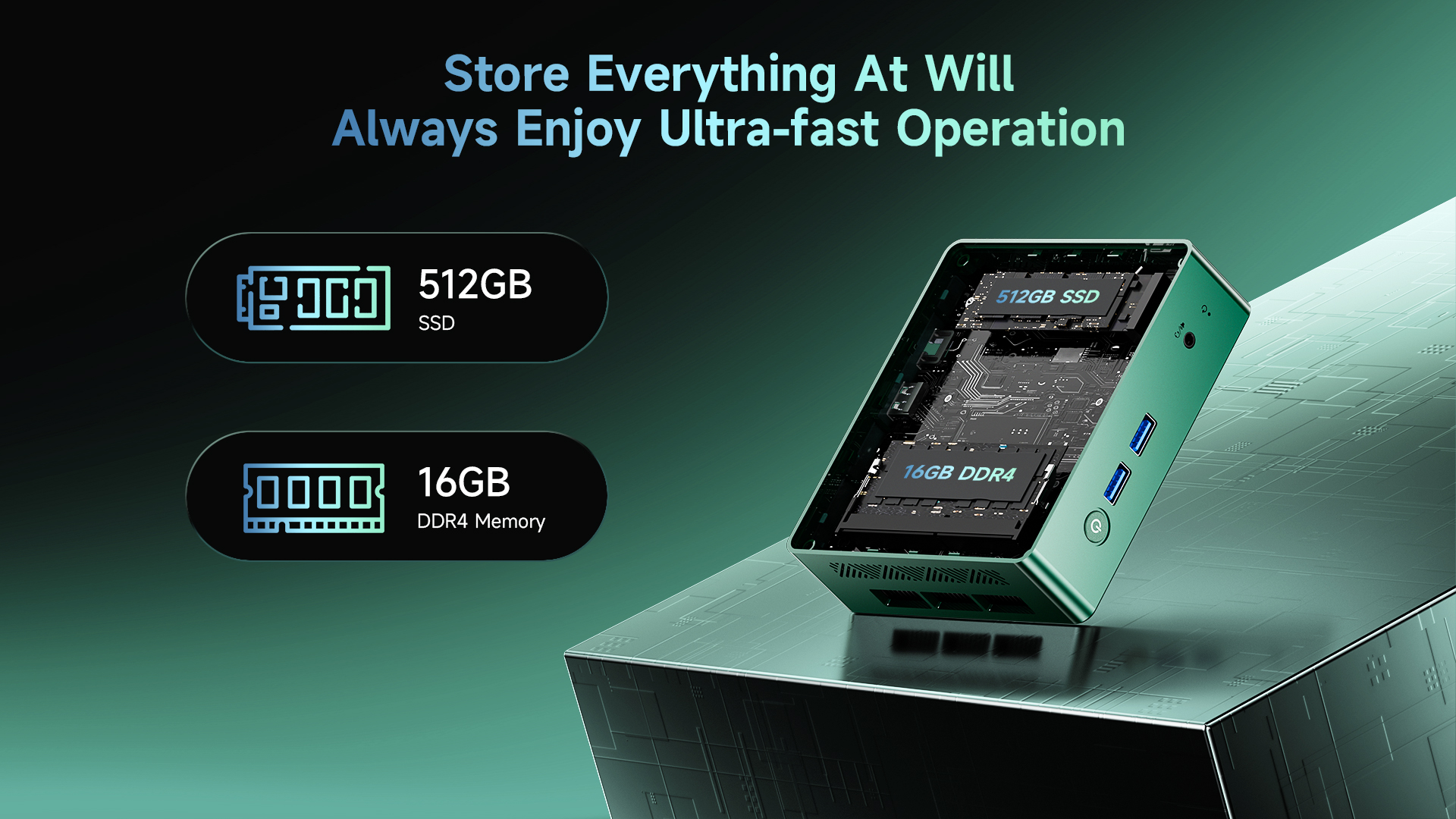

Expandable storage：DDR4 Memory Slot×2, M.2 SSD Slot×2
Appearance: Slim and lightweight of 300g
Availability:
Quantity:

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

ModelMaxMini B6 Turbo
ProcessorIntel Core i5-8257U
FrequencyBase Frequency: 1.4GHz / Burst Frequency: 3.9Hz
Number of Cores & Number of Threads4 Cores & 8 Threads
GraphicsIntel Iris Plus Graphics 645
RAM16GB
Storage512GB SSD
Expandable storageDDR4 SO-DIMM x2, M.2_NVMe(PCIE3.0x2)_2280*1，M.2_SATA/NVMe(PCIE3.0x4)_2280*1
LAN1000Mbps Ethernet ×1
WiFi802.11a/b/g/n/ac/ax
BluetoothBluetooth 5.2
USBUSB 3.2 ×2, USB 2.0 ×2

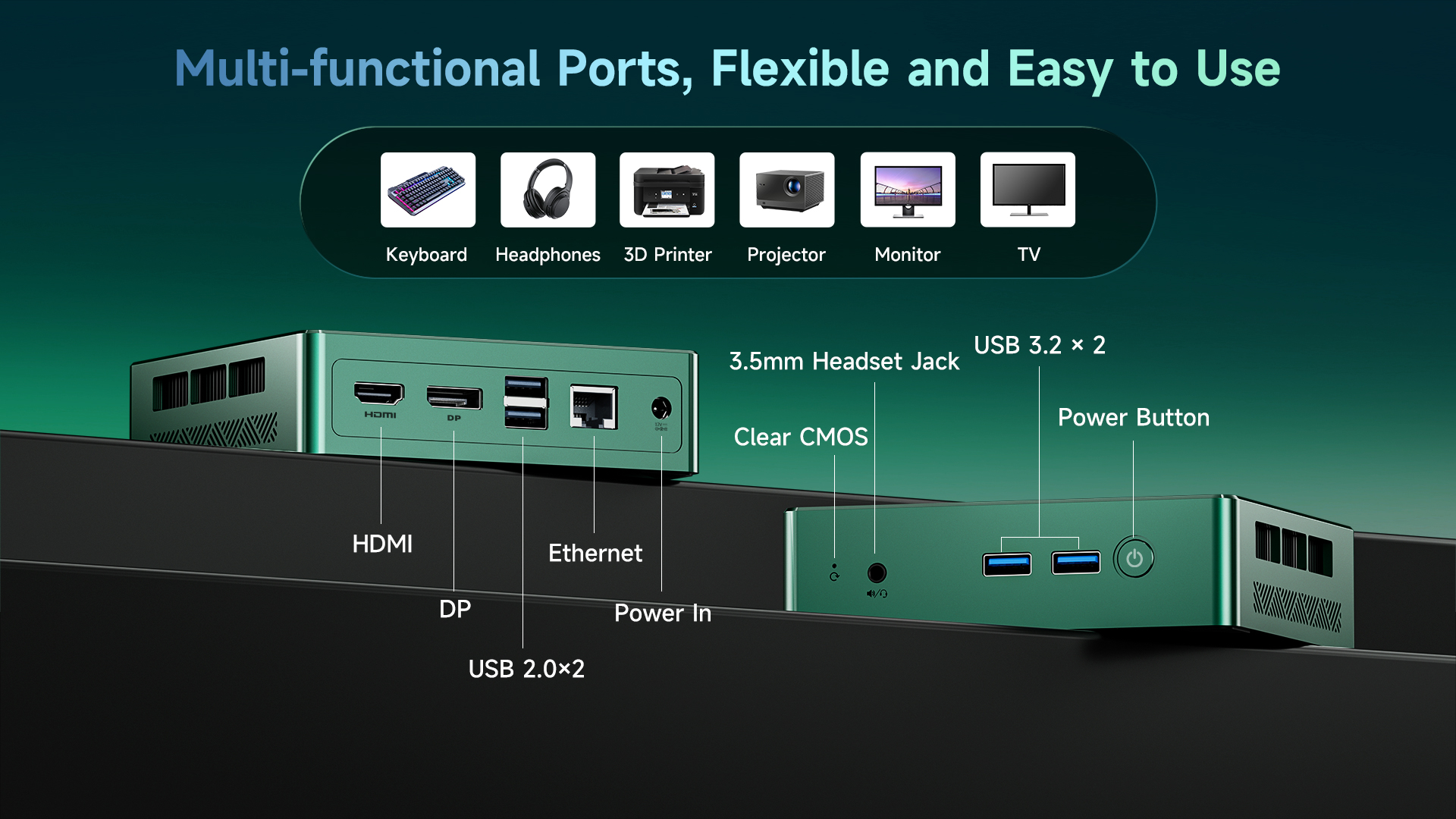

Other portsDC12V/3A；3.5-mm Headset Jack ×1；DP 1.2×1,HDMI 1.4b ×1；RJ45 ×1

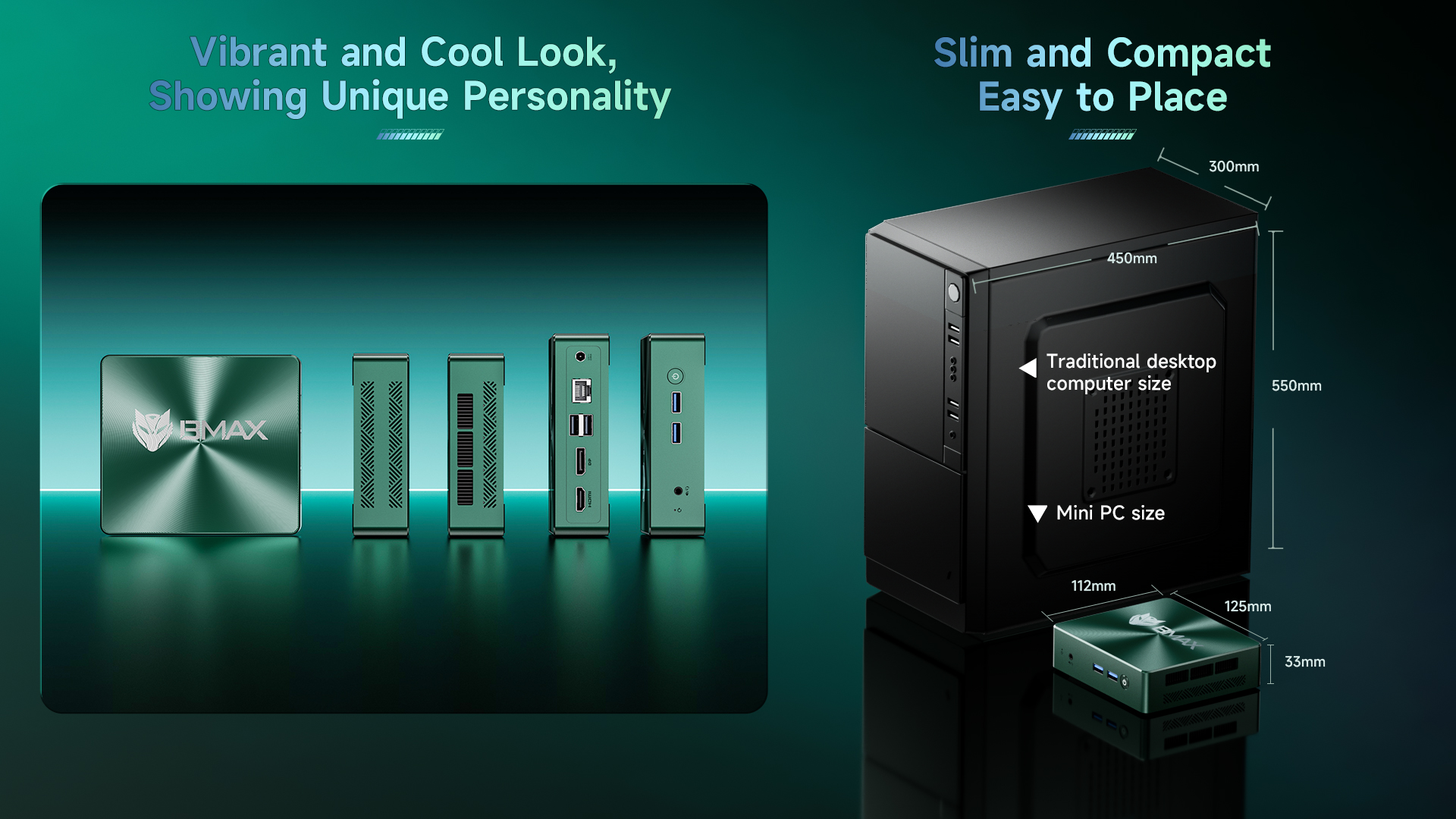

Item Dimensions125mm(L)×112mm(W)×33mm(H)(Due to product configuration and manufacturing process, the actual body size may vary, please refer to the actual product.)
Item WeightApproximately 300g (Due to product configuration and manufacturing process, the actual body size may vary, please refer to the actual product.)
B6 Turbo i5 mini PC
