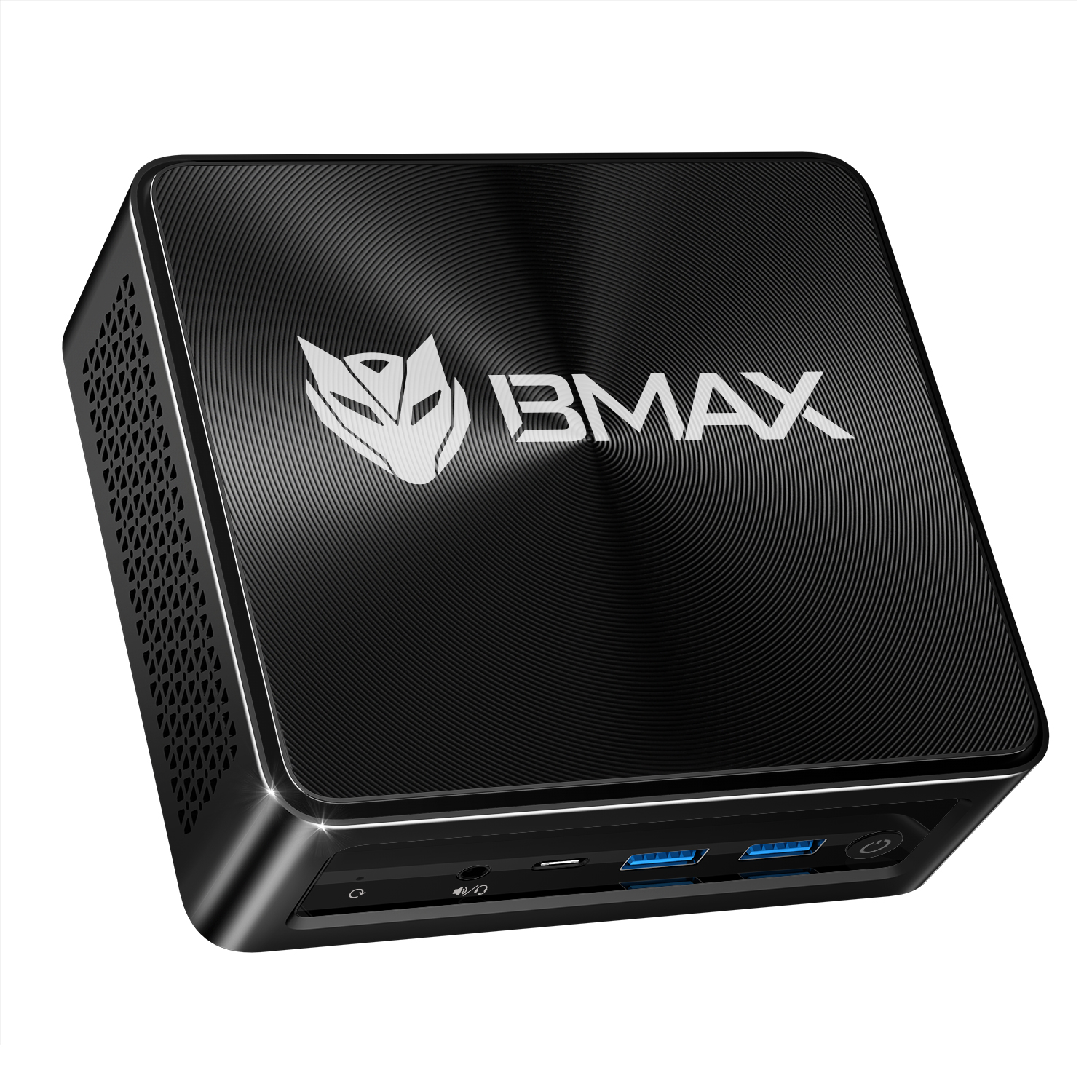

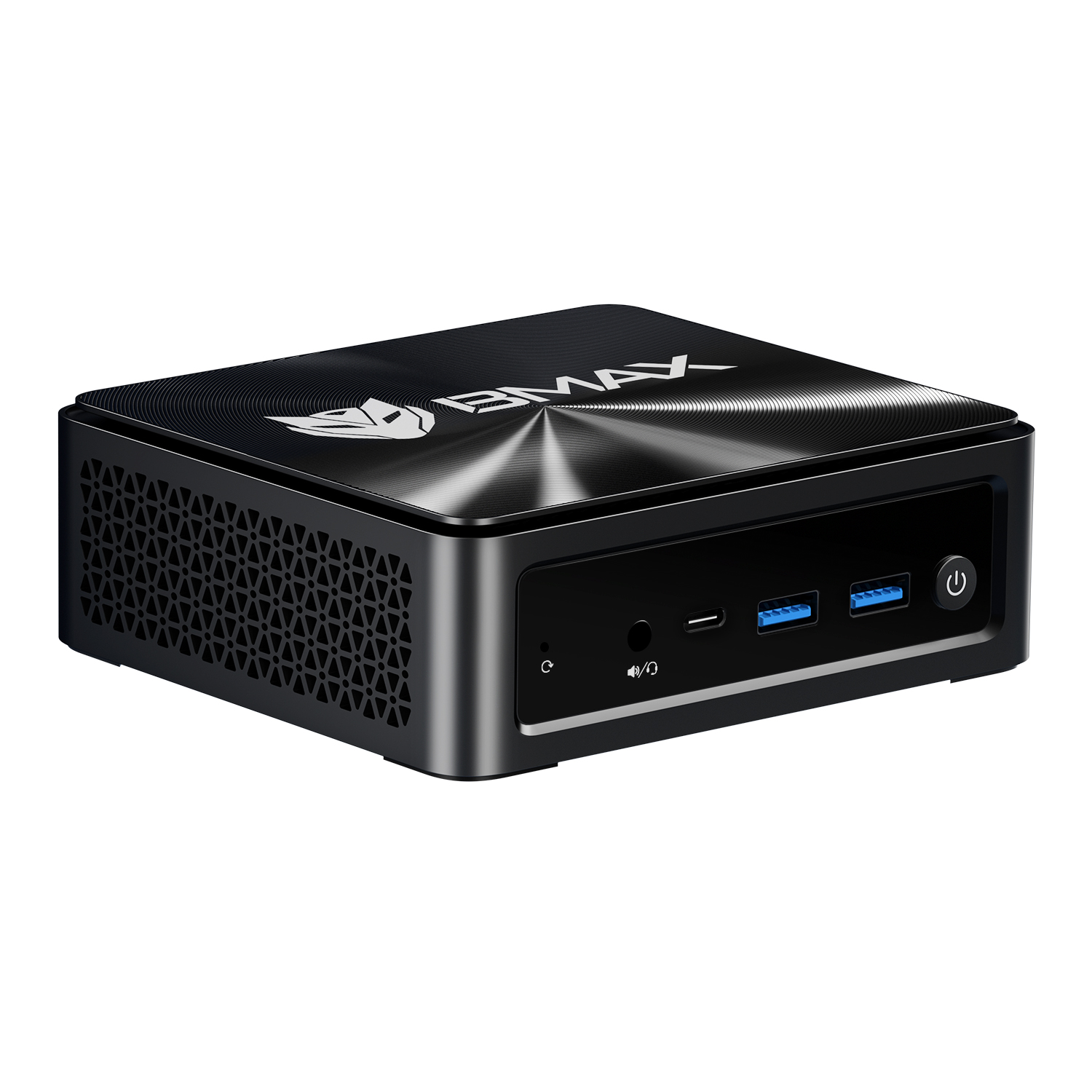

MaxMini B7 A Pro

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

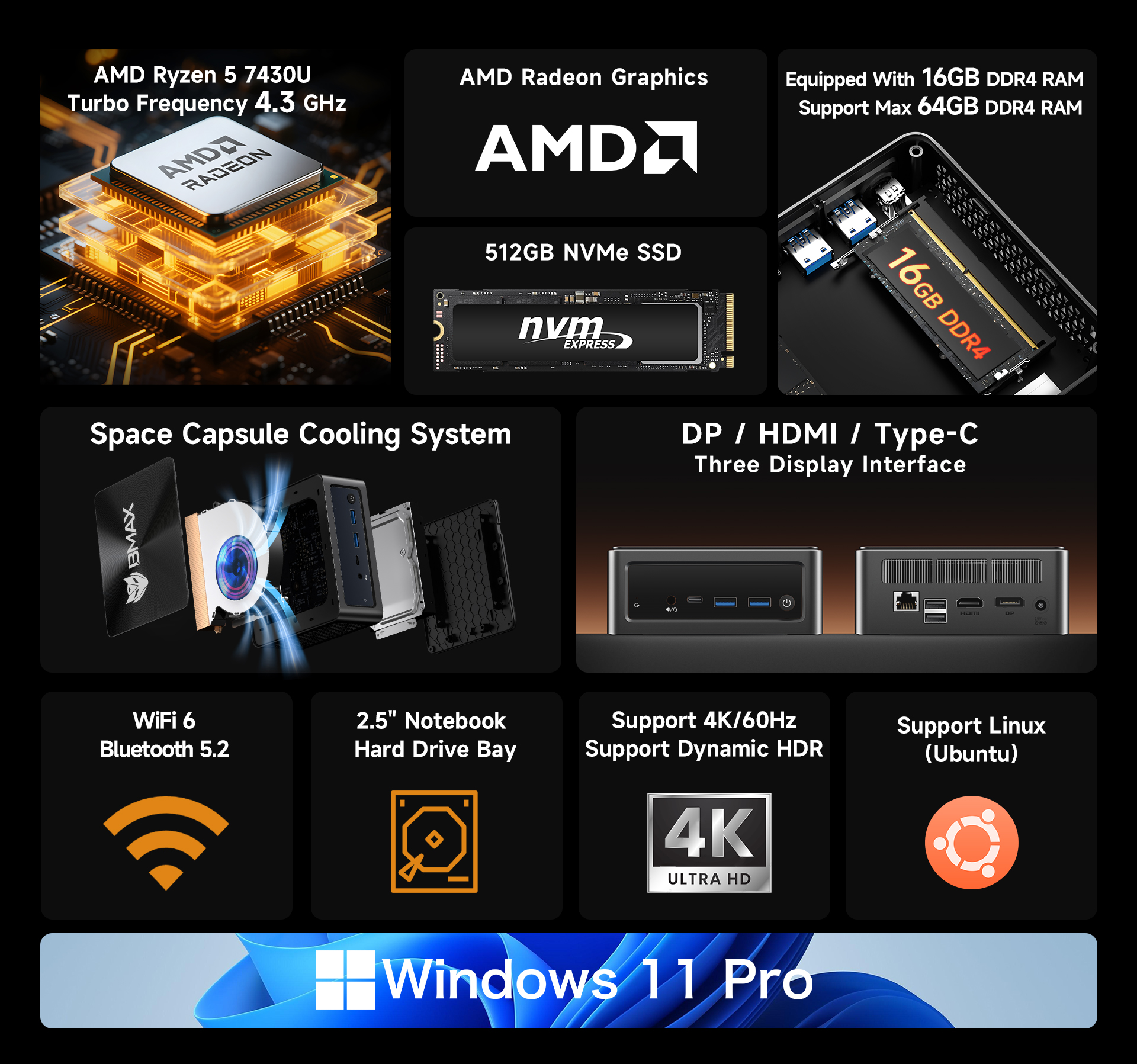

CPU: AMD Ryzen 5 7430U
GPU: AMD Radeon Graphics
Memory: 16GB DDR4
Storage: 512GB SSD
System: Windows 11
WiFi: WiFi 6
Bluetooth: Bluetooth 5.2
Interface: USB ×4, DC, Headset jack, DP×1, HDMI ×1, Type-C x 1, RJ45 ×1
Expandable storage:M.2 SSD Slot
Appearance: Slim and lightweight of 300g
Availability:
Quantity:

1

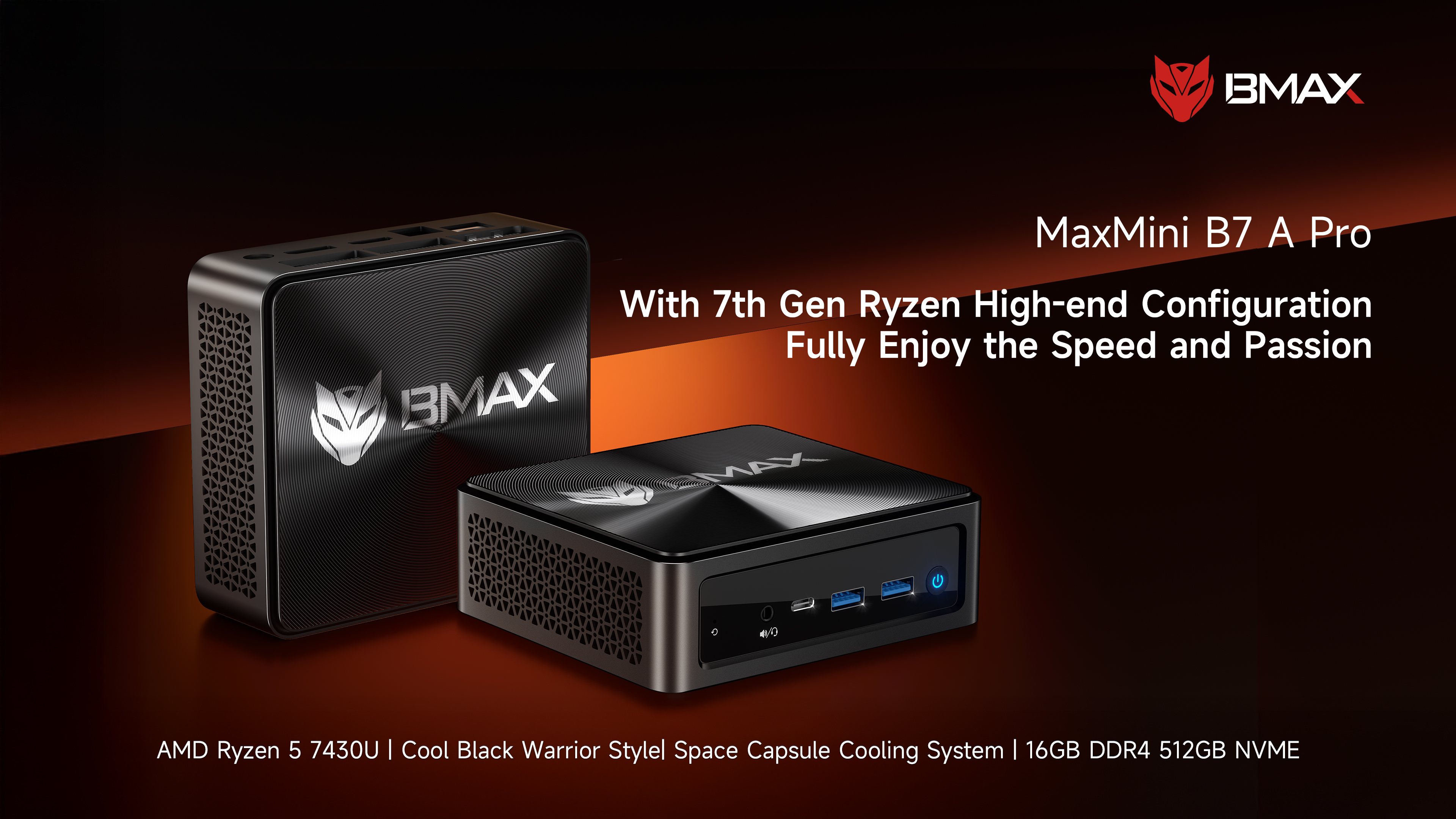

7th Gen Ryzen, Fully Enjoy the Passion

B7 A Pro not only highlights its personality with its cool black warrior style, but is also equipped with AMD's seventh-generation Ryzen 5 7430U powerful core, BMAX's original space capsule cooling system, and a 16GB+512GB high-end combination, allowing you to enjoy efficient office work and passionate entertainment.

2

3

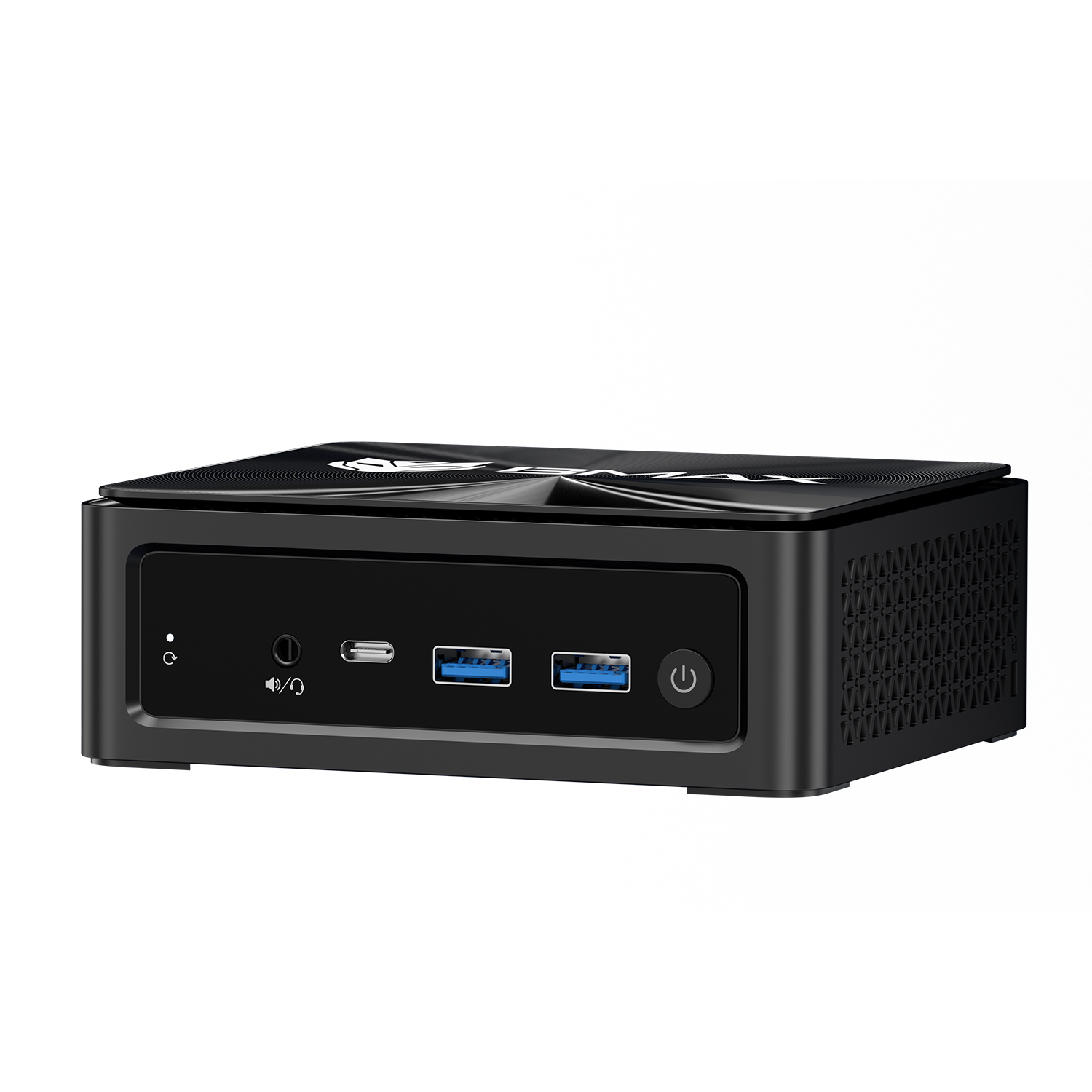

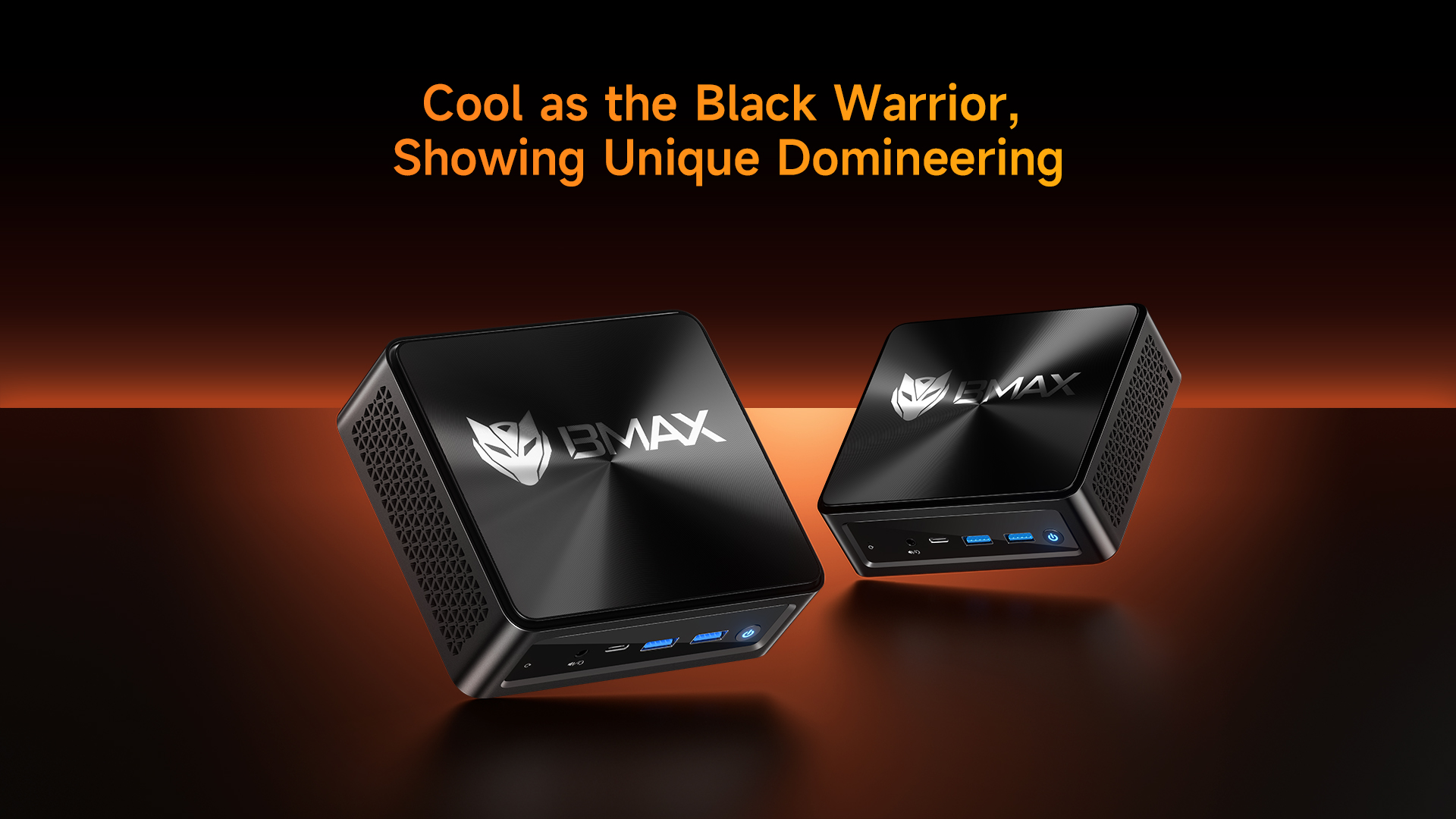

Cool as the Black Warrior, Showing Unique Domineering

The B7 A Pro mini computer adopts the same color scheme as the Black Warrior, which is very domineering and does not need to be deliberately ostentatious. It shows a unique style and is an eye-catching presence on the desktop.

4

AMD Ryzen 5 7430U Processor

The B7 A Pro is equipped with the powerful AMD Ryzen 5 7430U processor. Built using a 7nm process, it boasts 6 cores, 12 threads, a 16MB Smart Cache, and a turbo frequency of up to 4.30GHz. Compared to the Ryzen 7 5700U, it offers an 11.7% performance increase, providing ample power for effortless multitasking.

5

High-power Integrated Display for Indulgent Entertainment

The B7 A Pro's built-in AMD Ryzen Radeon graphics card boasts up to 2GB of video memory and an 1800MHz operating frequency. It can output 4K/60Hz video signals and supports three monitors with the same or different displays. Whether you're watching a movie or working, it delivers an excellent visual experience.

6

No Capacity Anxiety, Always Enjoy Efficient Creation

16GB of dual-channel memory and a 512GB NVMe SSD deliver blazing-fast read and write speeds. Create with ease, bringing you endless joy. In addition, you can expand memory and storage capacity according to your needs and experience better performance output.

7

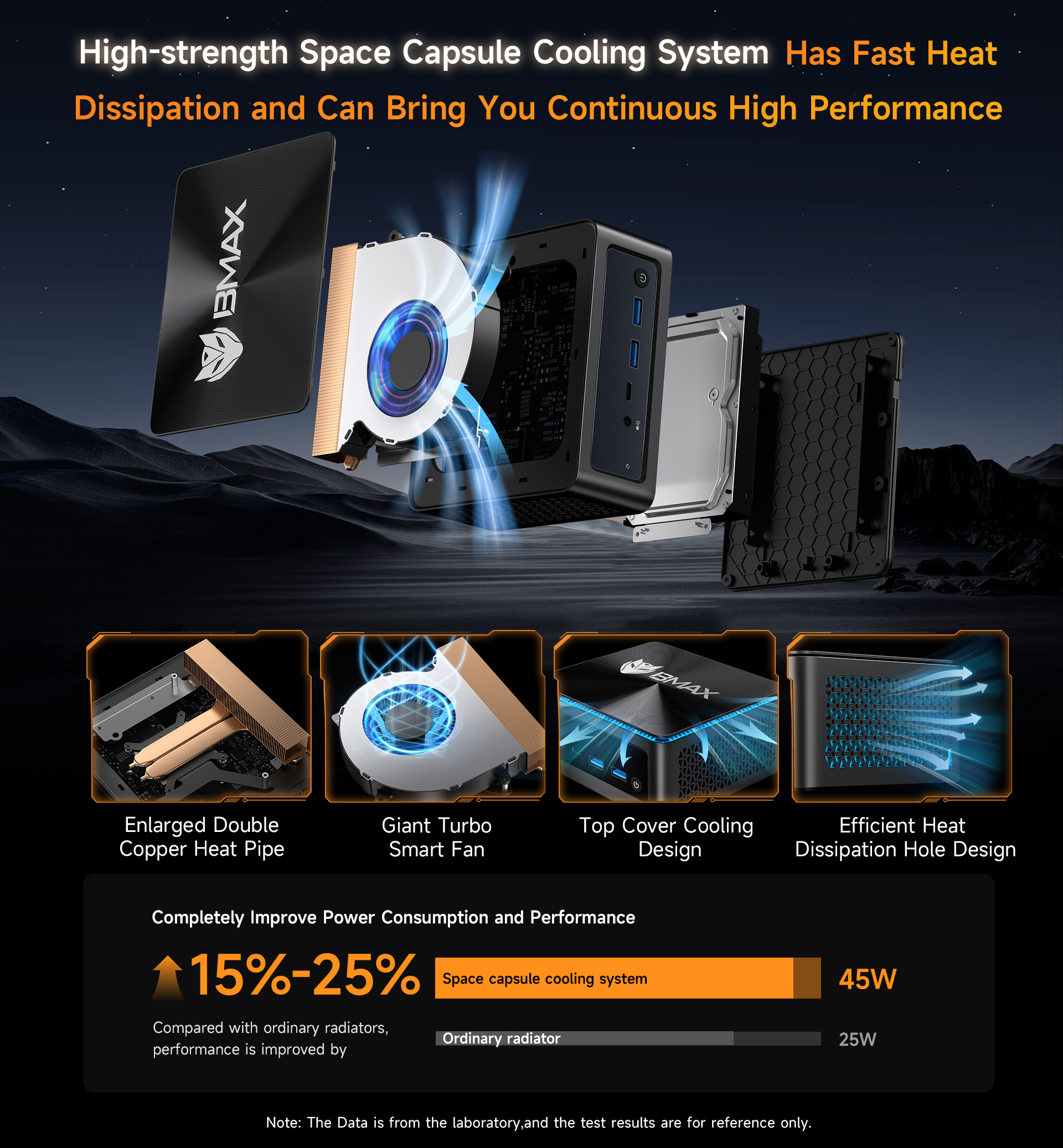

Unique Space Capsule Cooling System

BMAX's proprietary space capsule cooling system includes enlarged dual copper heat pipes, a giant turbo intelligent fan, top cover cooling, and high-efficiency heat dissipation vents. This highly efficient heat dissipation system delivers 45W power output and a 15%-25% performance boost, ensuring a consistently thrilling and enjoyable gaming experience.

8

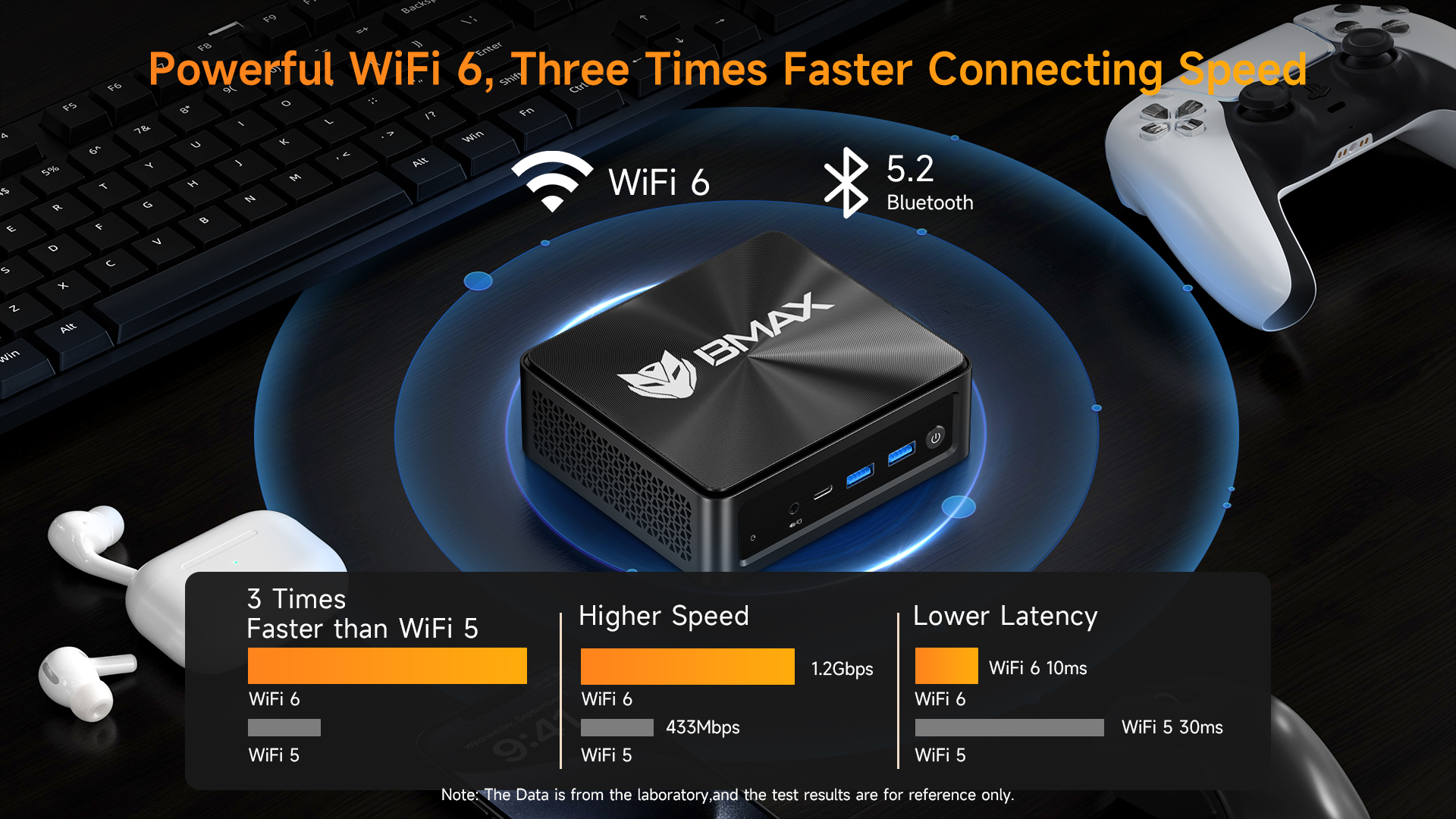

Powerful WiFi 6 triples speeds

Powerful WiFi 6 technology delivers speeds up to 1.2Gbps, more than three times the 433Mbps of WiFi 5. It also boasts high bandwidth and latency as low as 10ms, far superior to WiFi 5's 30ms, ensuring fast and stable online browsing.

9

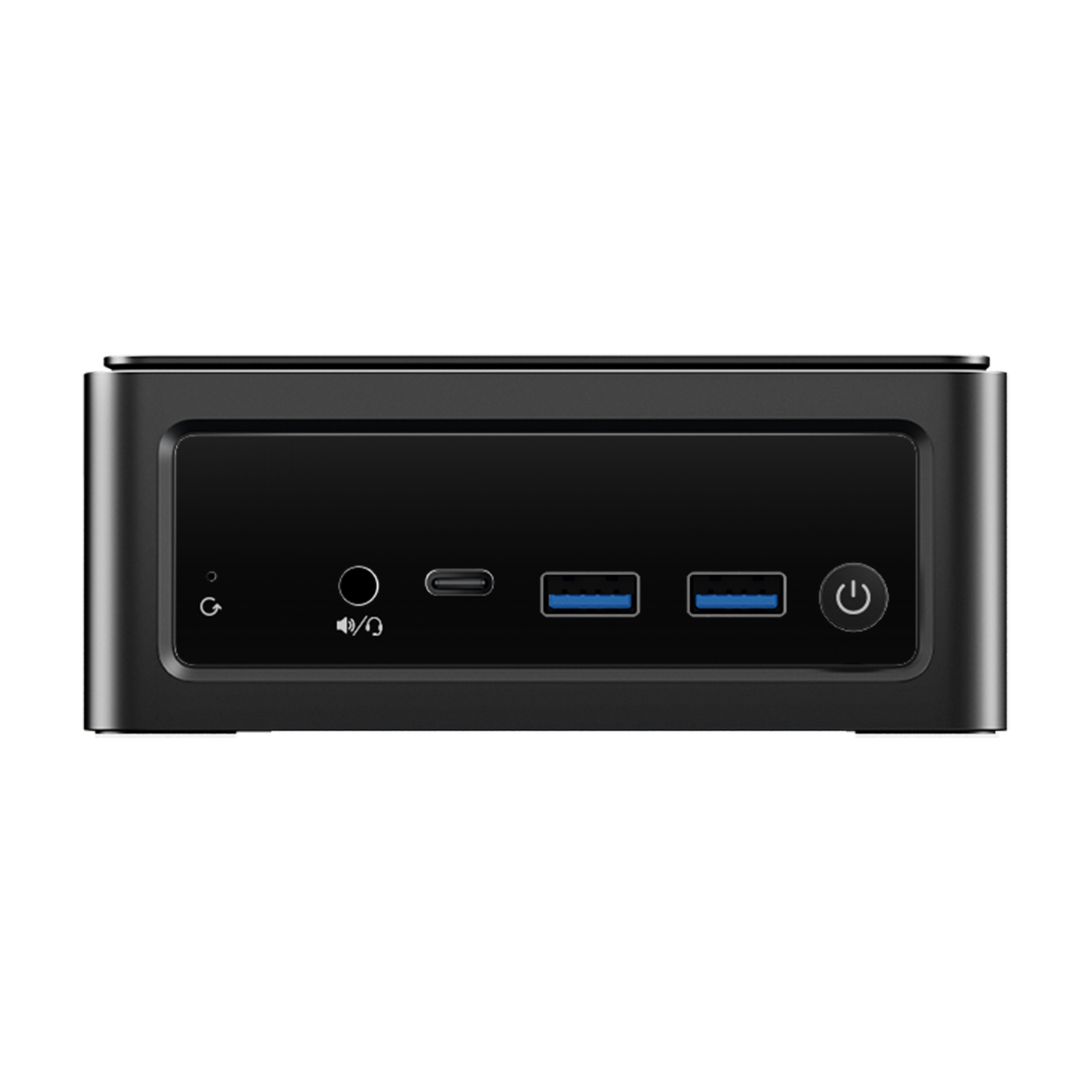

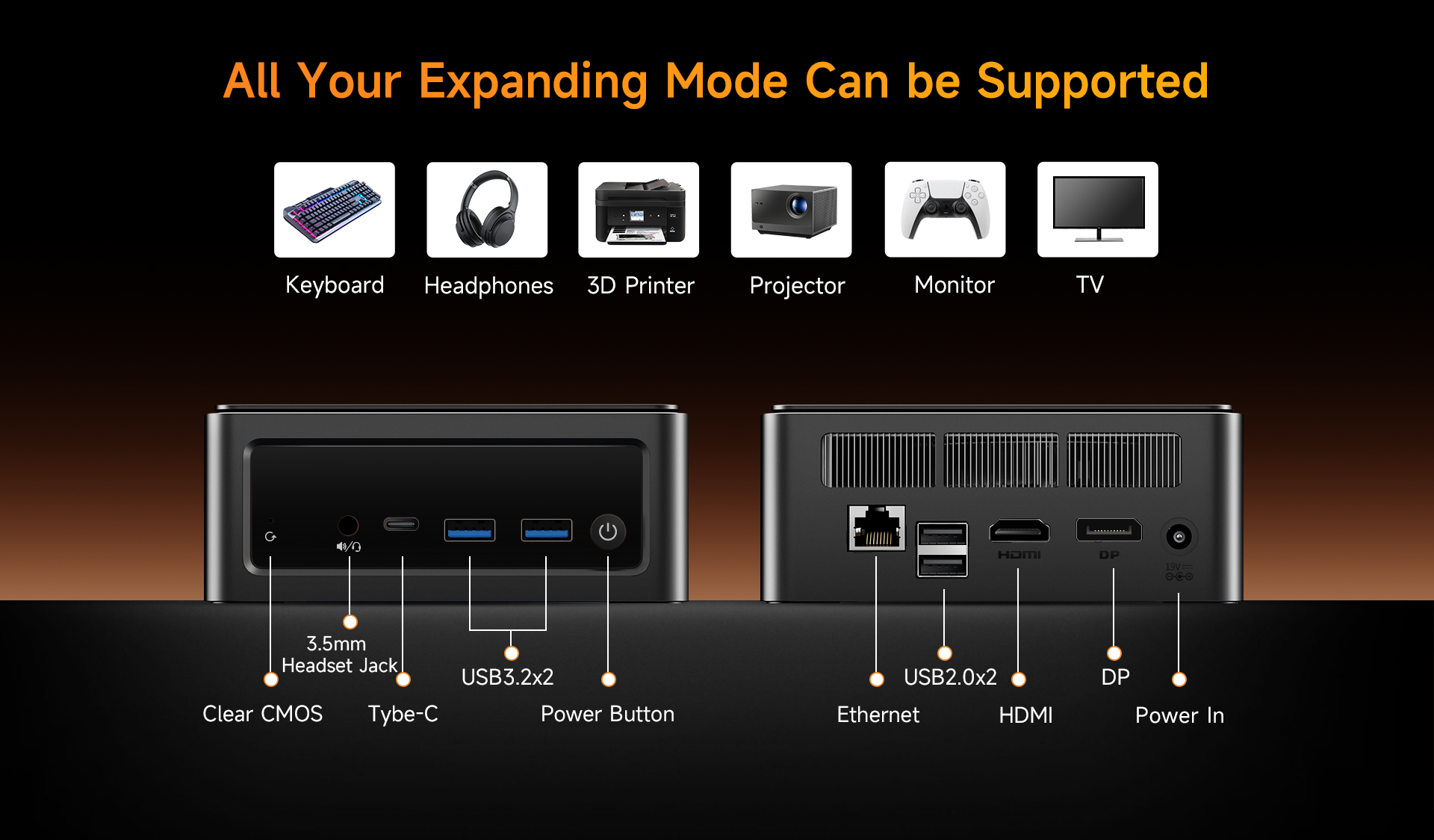

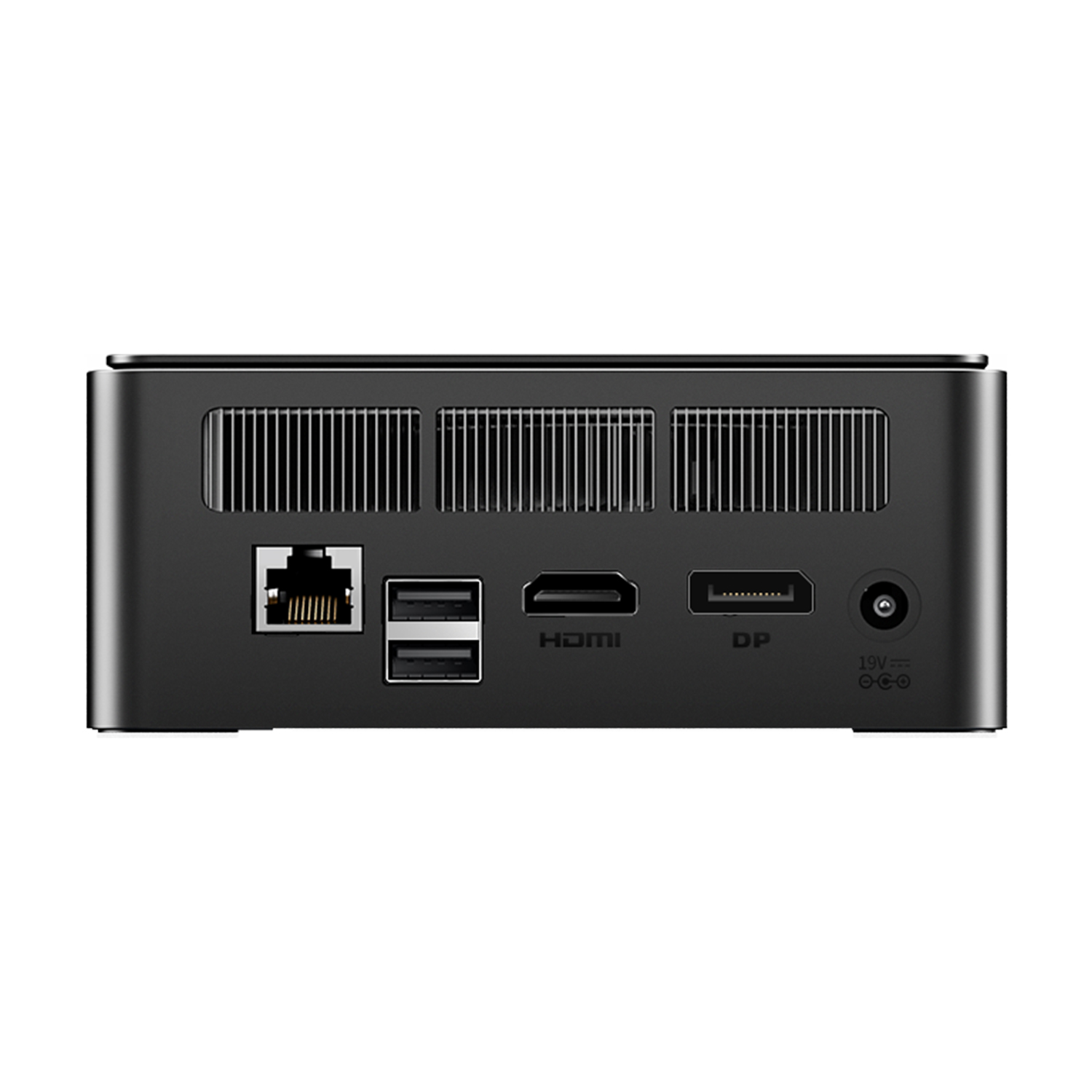

All Your Expanding Mode Can be Supported

B7 A Pro has a rich set of interfaces that can seamlessly adapt to keyboards, TVs, headphones, 3D printers, projectors and many other devices to meet diverse creative and entertainment needs.

10

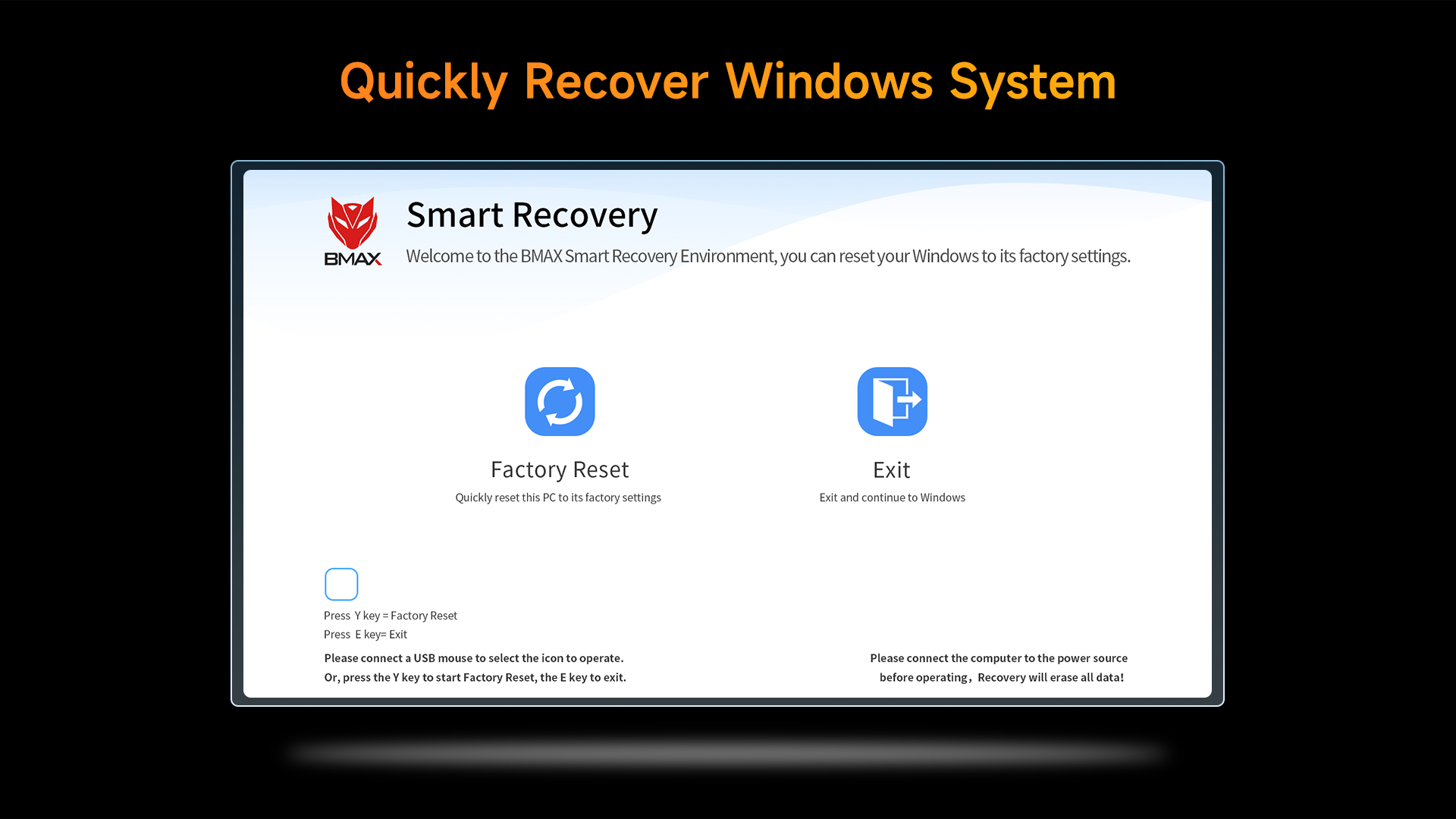

One-click Windows Recovery

The B7 A Pro is equipped with BMAX's original intelligent recovery system. When the system crashes unexpectedly, just press F9 continuously after booting up to enter the system. In a simple and quick way, you can restore the computer to the factory state and return to an efficient working state.

11

Support Dual Systems, Create Unlimited Possibilities

Compatible with Windows 11 and Ubuntu dual systems, whether running PS for design creation, using Ai software, or experiencing the special features of the Ubuntu system, you can easily control it, opening up more possibilities for you.

12

13

14

15

ModelMaxMini B7 A Pro
ProcessorAMD Ryzen 5 7430U
FrequencyBase Frequency: 2.3GHz / Burst Frequency: 4.3Hz
Number of Cores & Number of Threads6 Cores & 12 Threads
GraphicsAMD Radeon Graphics
RAM16GB DDR4
Storage512GB NVMe SSD
Expandable storageM.2_2280_PCI-e4.0x4 (NVMe) x1
LAN1000Mbps Ethernet ×1
WiFi802.11a/b/g/n/ac/ax
BluetoothBluetooth 5.2
USBUSB 3.2 Gen 2 ×2, USB 2.0 ×2
Other portsDC19V/3.42A, 3.5mm Headset jack, HDMI 2.1 ×1, DP 1.4×1, Type-C (full features) x 1, RJ45 ×1
Item Dimensions126mm(L)×112mm(W)×52mm(H)(Due to product configuration and manufacturing process, the actual body size may vary, please refer to the actual product.)
Item WeightApproximately 300g
